Agilent 41501B SMU and PGU 2 units for Sale


SDI fabsurplus.com is pleased to announce the availability of the following listed used Agilent 41501B SMU and PGU 2 units. This Agilent 41501B SMU and PGU 2 units is available for immediate sale. Please click on the "Send More Details" button if you'd like to get more details, photos and specifications of this SMU and PGU 2 units and your request will be forwarded to our customer representatives automatically. Crating, refurbishment and delivery can be quoted on request.


Agilent 41501B Equipment Details

SDI ID: 76605
Manufacturer: Agilent
Model: 41501B
Description: SMU and PGU 2 units
Version: 200 mm
Vintage: 01.06.2001
Quantity: 1
Sales Condition: as is where is
Lead Time: immediately
Sales Price (each): 6,000 USD
Comments:


Config: HPSMU: 1Unit
PGU: 2Unit
 Parameter analyzer

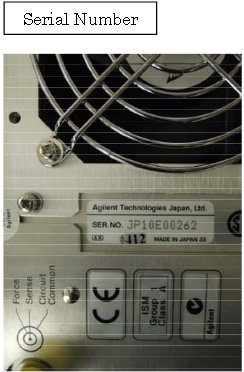

Comments: Serial Number JP10E00262
Vintage 2001
OEM Agilent Technologies
Model 41501B
Measuring and analyzing the characteristics of Process semiconductor devices. SYSTEM CONFIGURATION
HPSMU: 1Unit
PGU: 2Unit
Spec. Options
HPSMU (High Power SMU) two pulse generator units (PGUs) (Option)
one high power source monitor unit (HPSMU: 10 fA/ V to 1 A/200 V)
or two MPSMUs (Option).
one ground unit (GNDU)
Voltage 0 V to 200 V
Current  1 pA to 1 A
Compliance accuracy Same as current (voltage) set accuracy.
GNDU (Ground Unit)
PGU (Pulse Generator Unit)
Output voltage 0 V  100 V
Sink current maximum 1.6 A
Output terminal/connection
Single triaxial connector,
Kelvin (remote sensing)
Modes pulse or constant
Amplitude 0 Vpp to 40 Vpp
Window -40.0 V to +40.0 V
Maximum current  200 mA (width: d 1 ms, average current d 100 mA)
100 mA
Output impedance 50  and low impedance (d 1  )
Burst count range 1 to 65535
Trigger output Level: TTL
Timing: same timing and width as PGU1 pulse output.

Categories:
Attachments: 8 Files
