Muegge MX4000D-110LL MICROWAVE POWER SUPPLY for Sale


SDI fabsurplus.com is pleased to announce the availability of the following listed used Muegge MX4000D-110LL MICROWAVE POWER SUPPLY.
Please click on the "Get Quote" button at the end of the MX4000D-110LL description, if you'd like to get a quotation, photos and specifications of this MICROWAVE POWER SUPPLY, and your request for this equipment will be forwarded to our SDI sales representatives automatically.
This Muegge MX4000D-110LL MICROWAVE POWER SUPPLY is available for immediate sale.
Crating, refurbishment and delivery for this equipment can be quoted on request.

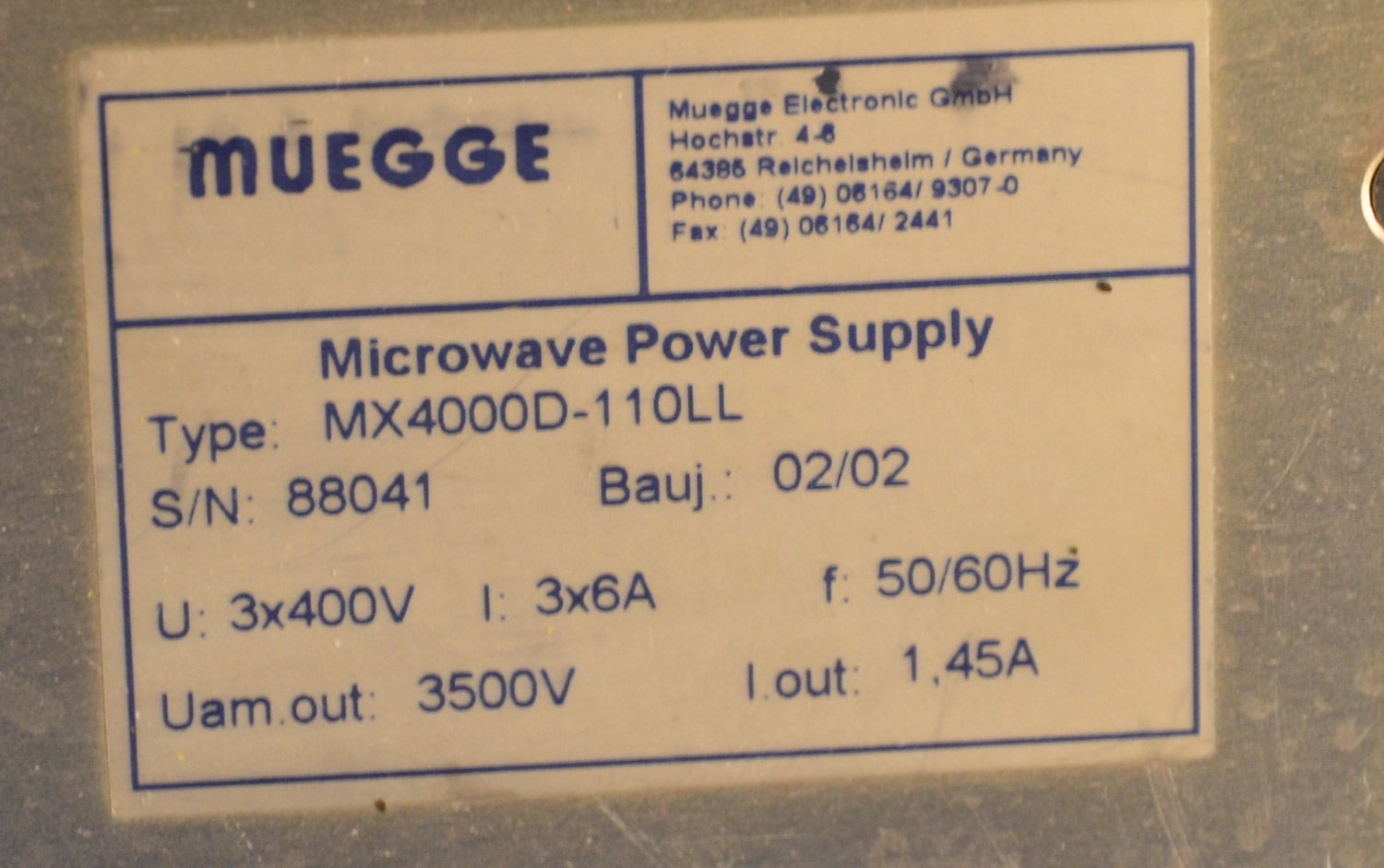

Muegge MX4000D-110LL Equipment Details

SDI ID: 106242
Manufacturer: Muegge
Model: MX4000D-110LL
Description: MICROWAVE POWER SUPPLY
Version: SPARES
Vintage: 01.02.2002
Quantity: 8
Sales Condition: as is where is
Lead Time: immediately
Sales Price (each): Inquire
Comments:

The Muegge microwave generator system comprises the following components:-
Microwave Power Supply: MX4000D1-110LL
Magnetron Head: MH2000S-215BB (Available for purchase separately)

Technical characteristics:
HF Frequency:2.450 GHz ± 10 Hz
CW HF Output Power: 2000 W max (0–100%)
Pulse HF Output Power: 4000 W max (up to 500 Hz)
Ripple: <30%
Waveguide Flange: UDR26

Magnetron Type: MB2565A-120BH with
Anode Voltage: -3500 V
Anode Current: 725 mA

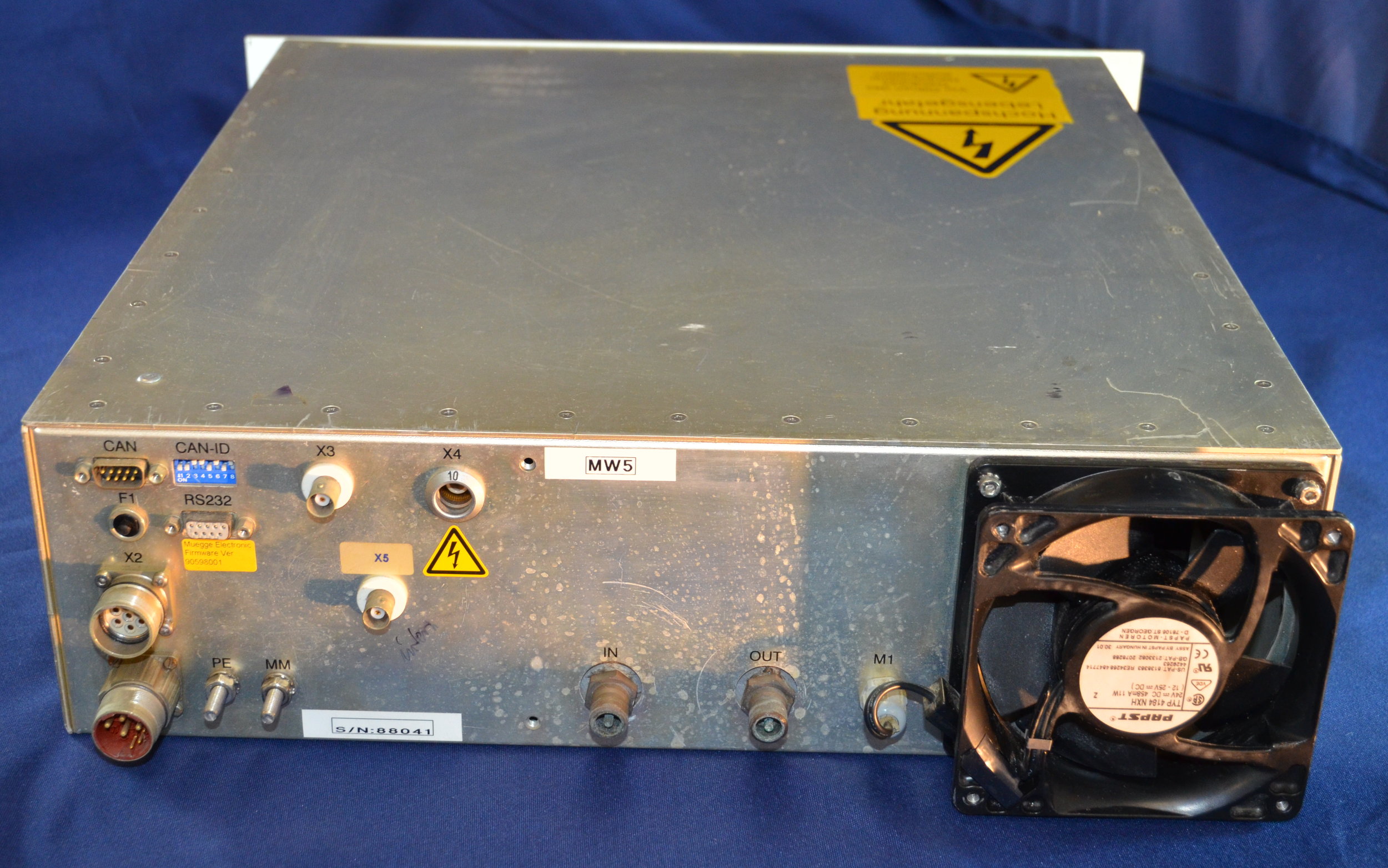

Cooling:
Microwave Power Supply:
Air-cooled and Water-cooled: 3 l/min, 3 bar max
Magnetron Head:
Air-cooled and Water-cooled: 3 l/min, 3 bar max

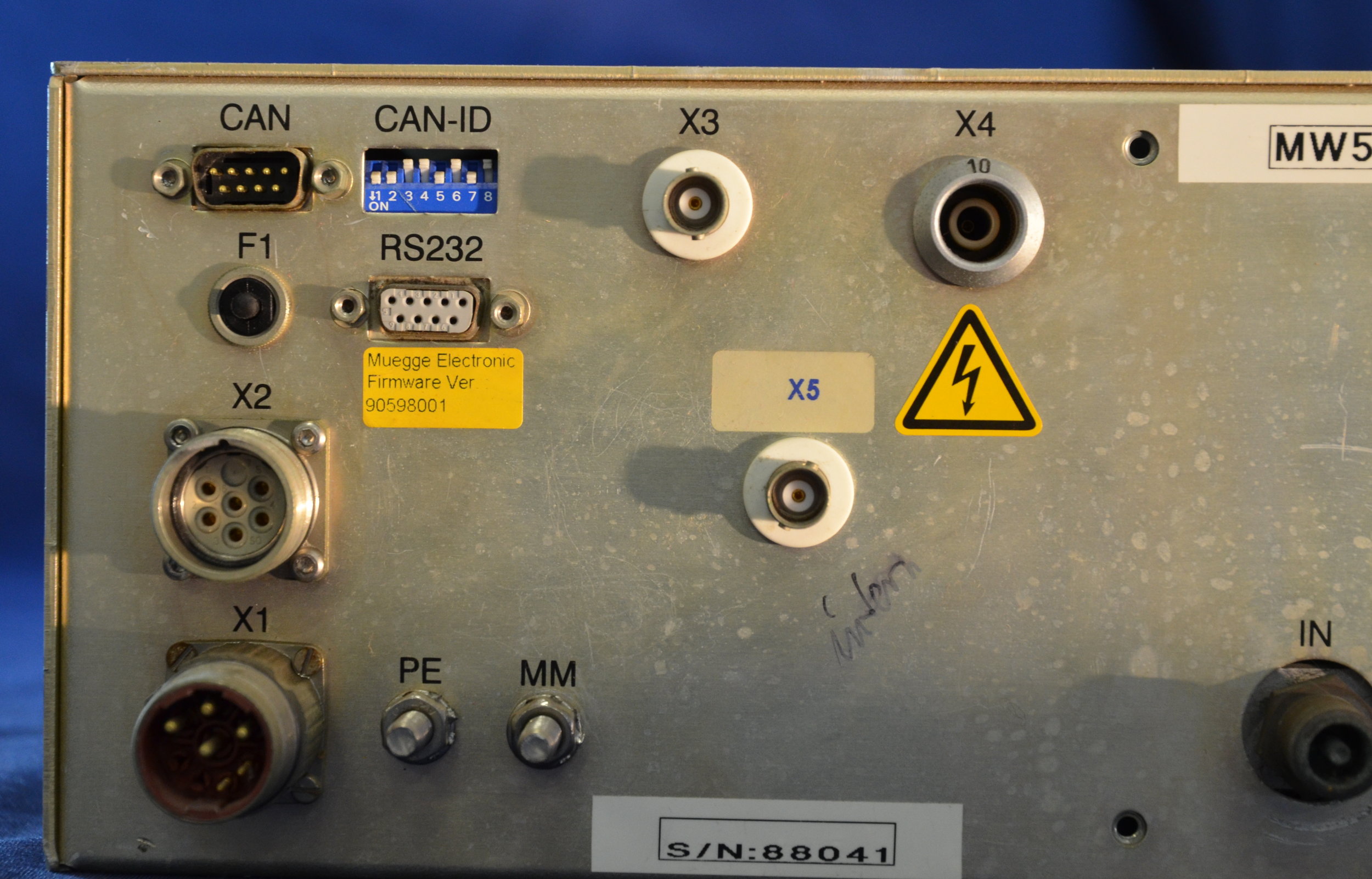

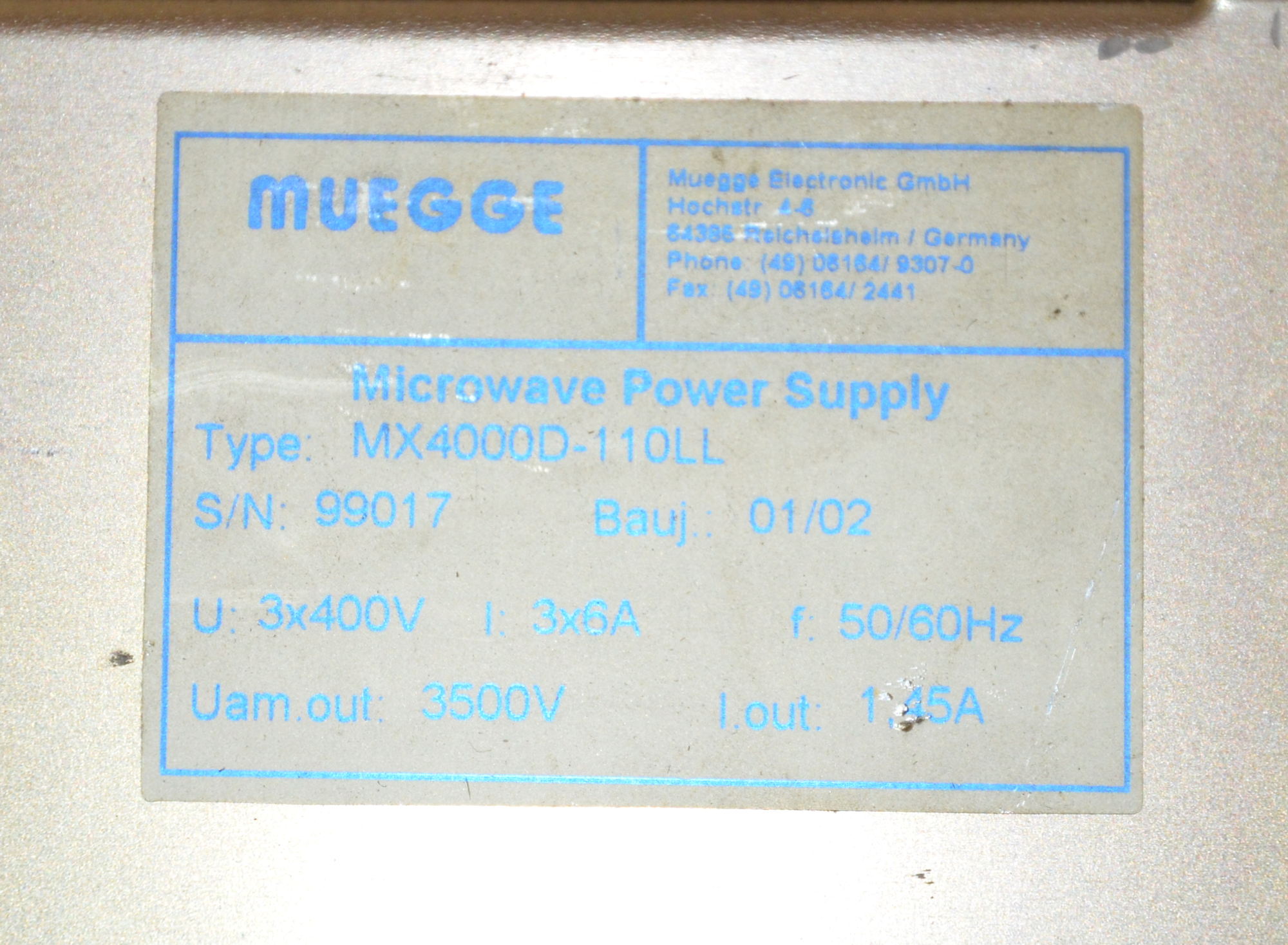

Mains Power Supply: 3x 400 V / 50–60 Hz / 6 A on plug X1
Auxiliary Power Supply: 230 V / 50–60 Hz / 2 A on plug A1
Programming I/F : RS232 serial interface
Software System Type: CAN Bus Interface via CAN plug

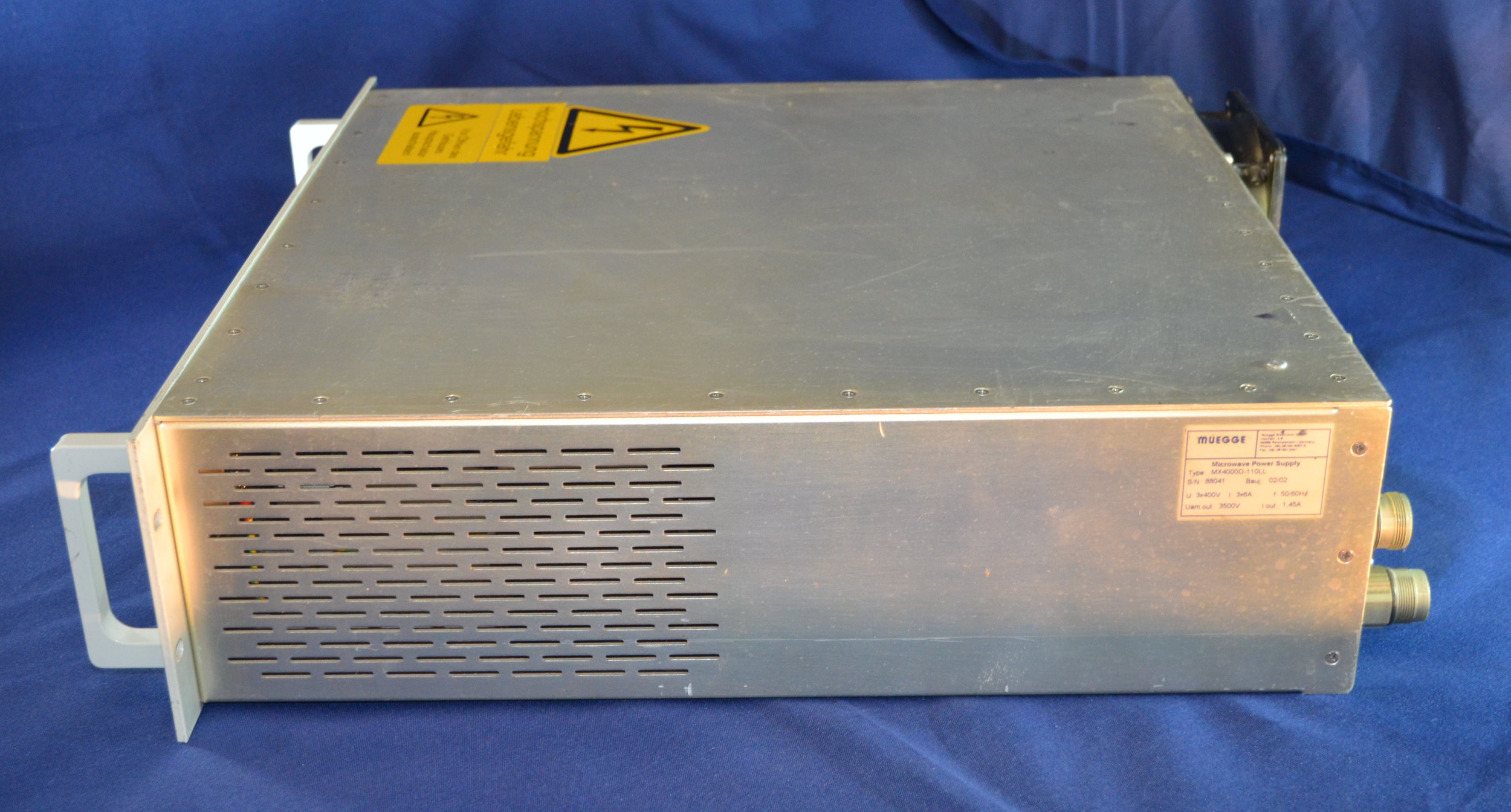

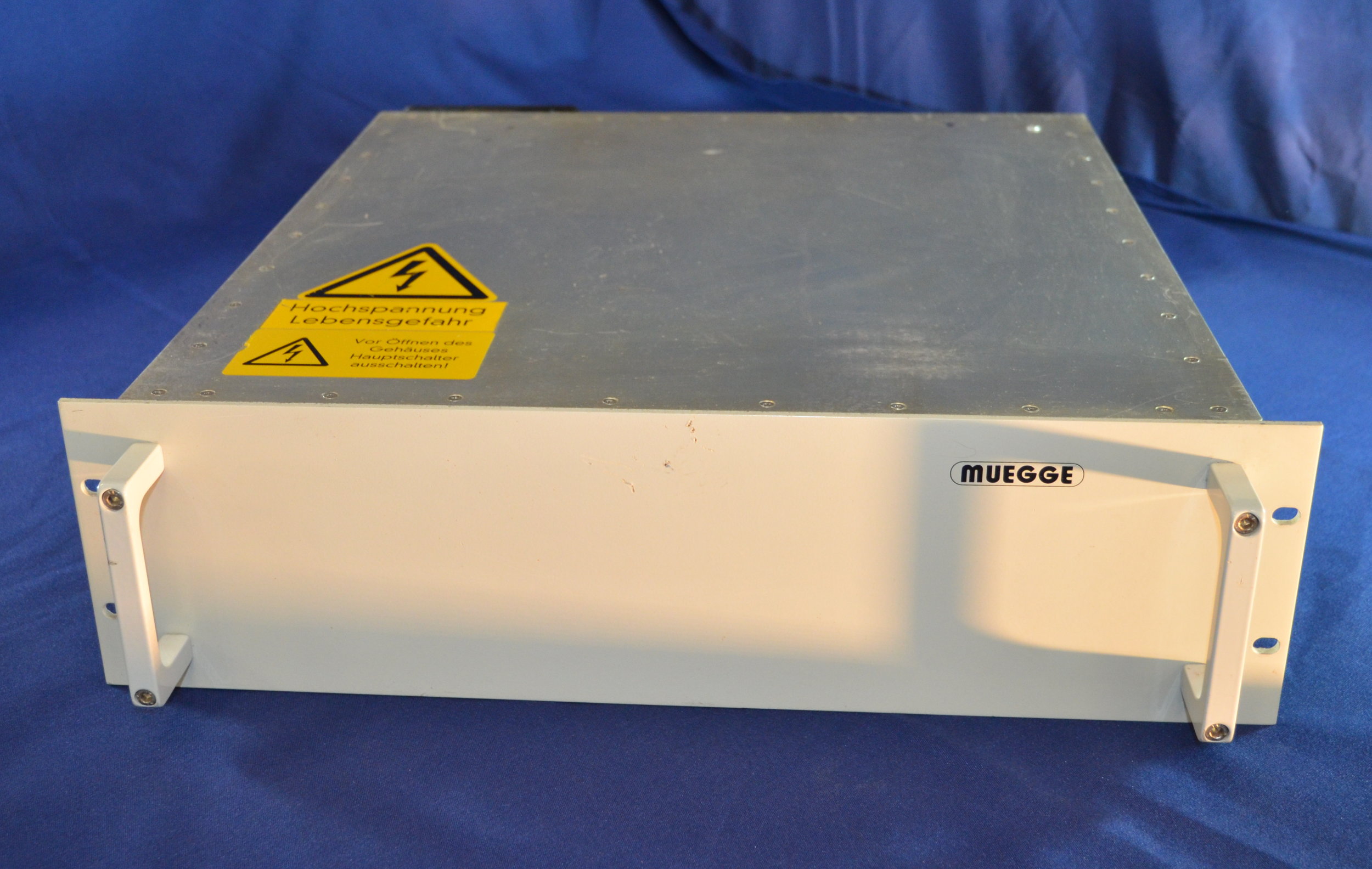

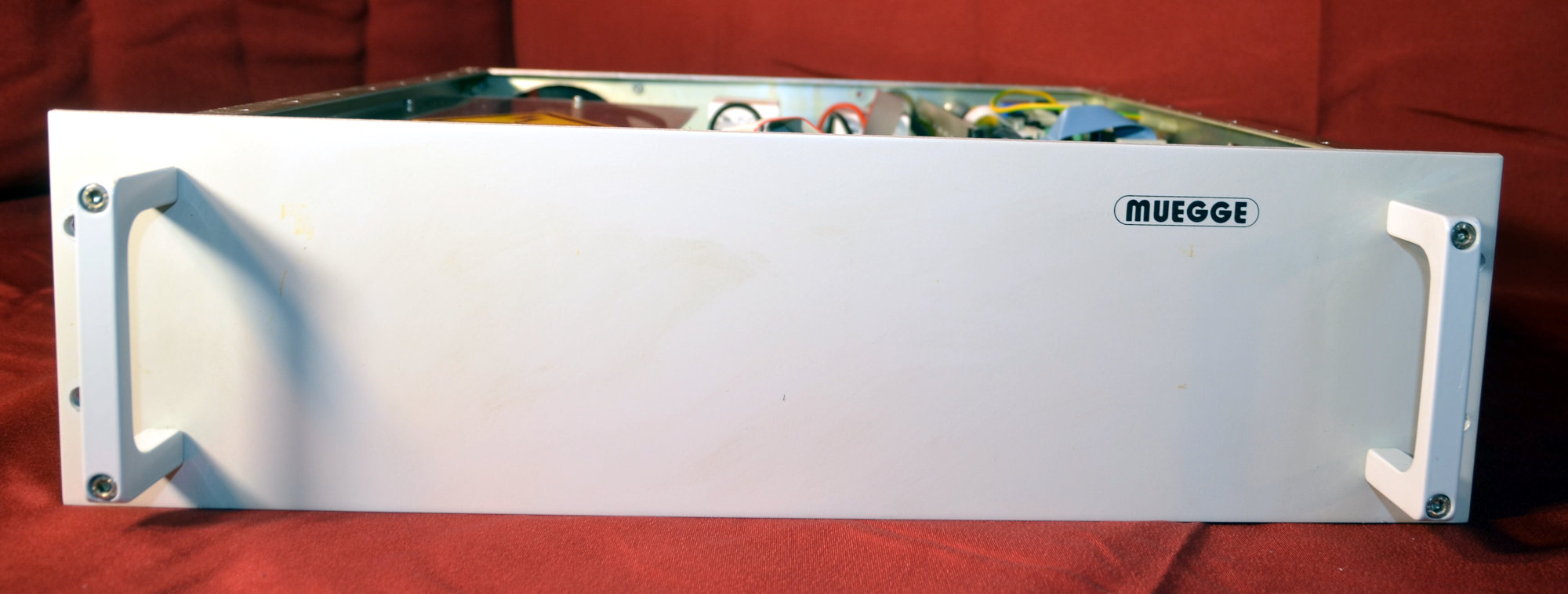

Magnetron Power Supply Case Characteristics: 19" plug-in case, 460 mm depth

Magnetron Head Assembly Characteristics:
Case: Closed Box, Water Cooled.
Waveguide Flange: PDR26
Dimensions:LXWXH 230×125×300 mm

PULLED FROM A WORKING MACHINE

PACKED WEIGHT AND DIMS 53 CM X 64 CM X 17 CM (H) WEIGHT 14 KG
