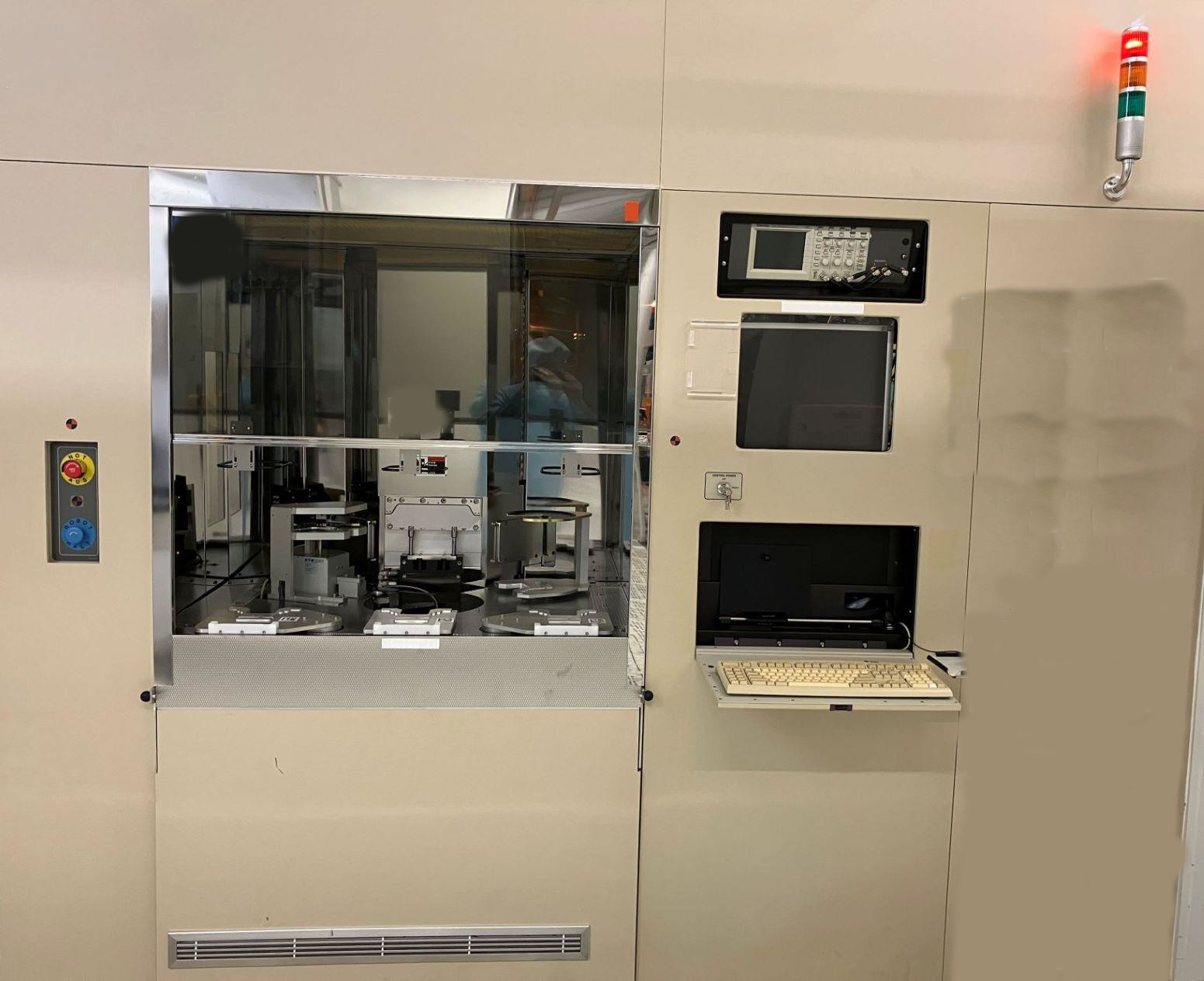

SDI fabsurplus.com is pleased to announce the availability of the following listed used Axcelis NV8250HT Medium Current Implanter.
Please click on the "Get Quote" button at the end of the NV8250HT description, if you'd like to get a quotation, photos and specifications of this Medium Current Implanter, and your request for this equipment will be forwarded to our SDI sales representatives automatically.
This Axcelis NV8250HT Medium Current Implanter is available for immediate sale.
Crating, refurbishment and delivery for this equipment can be quoted on request.
| SDI ID: | 116429 |
|---|---|
| Manufacturer: | Axcelis |
| Model: | NV8250HT |
| Description: | Medium Current Implanter |
| Version: | 200 mm |
| Vintage: | 01.06.2002 |
| Quantity: | 1 |
| Sales Condition: | as is where is |
| Lead Time: | Inquire |
| Sales Price: | Inquire |

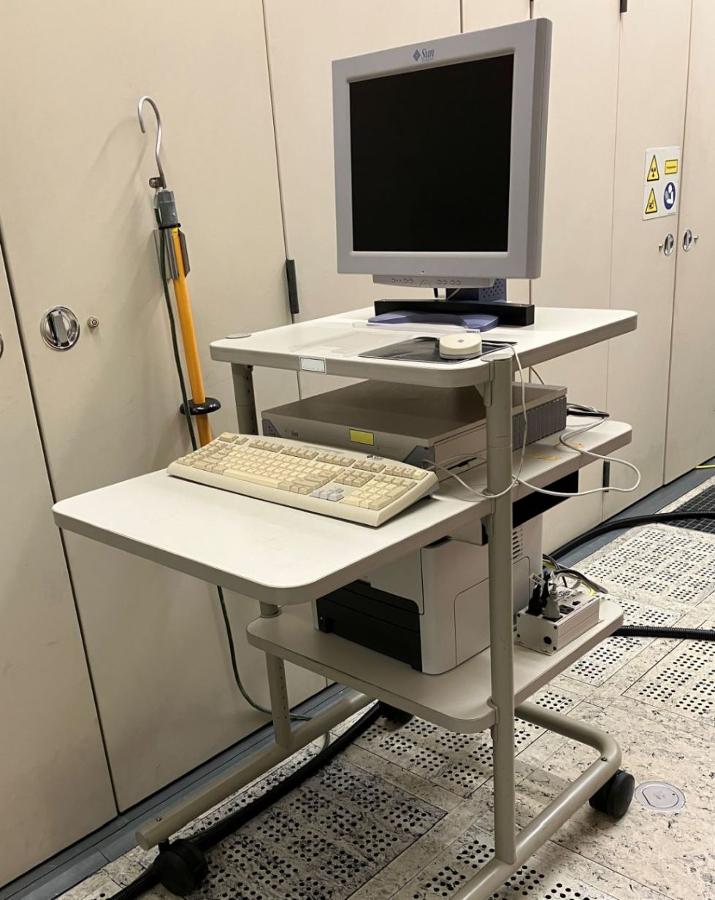

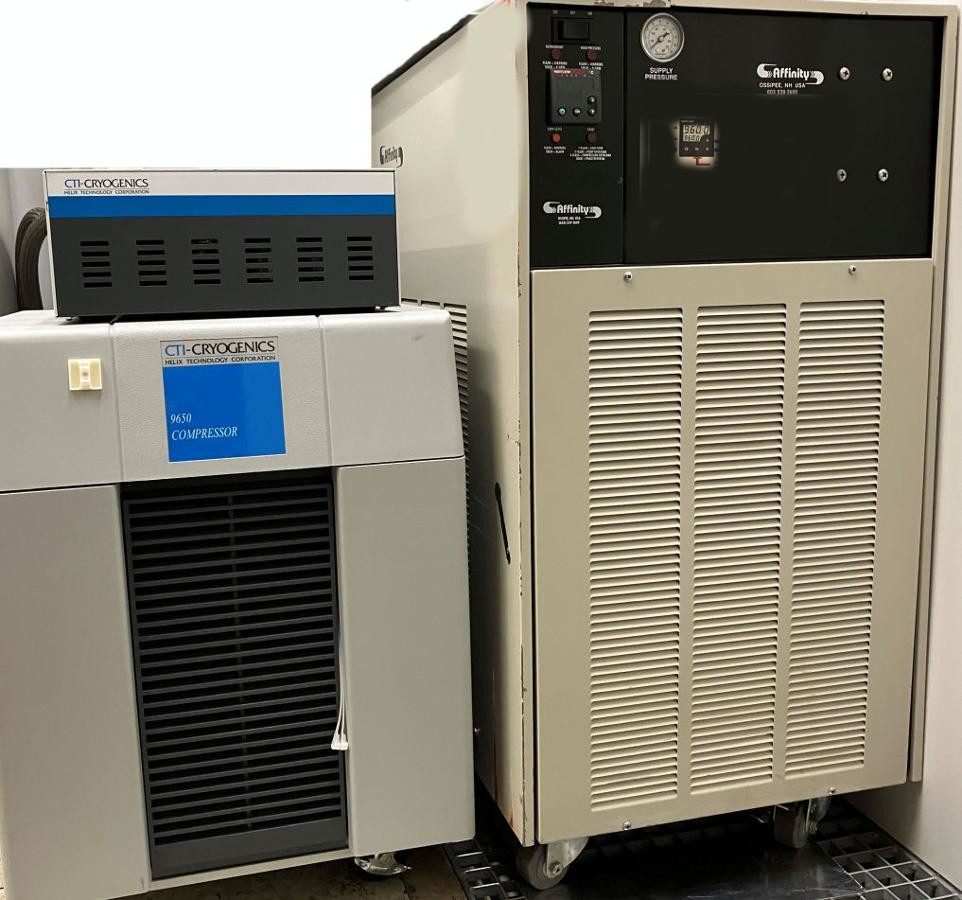

| Comments: | CE-Conformity: Yes Location: greyroom Voltage: 208V Cryo-Pumps: 3x CTI/Edwards Onboard: OB-8 Cryo-Kompressor: CTI 9650 Low-Voltage Turbo-Pumps: Seiko/Edwards: STP1003C, STP-301C, STP-1003C Rough-Pumps: Edwards: without QDP40, not included Endstation Rough-Pump: not included Wafersize: 8inch(200mm) Clamp-Type: E-Chuck green with Non-�C Controller Wafer-Cooling: Galden HT110 with Affinity PWC-020K-BE35CBD2 (R507) (condition unclear) Gasbox: Modular 5-String, 4x 2,0L Size String1: Argon Carriergas; MFC Unit-1662 2sccm BF3 String2: BF3 SDS-Low-Pressure Type VCR 1/4"; MFC Unit-1662 2sccm BF3 String3: condition unclear, Type VCR 1/4" MFC Unit-1662 2sccm BF3 String4: AsH3 SDS-Low-Pressure Type VCR 1/2"; MFC Unit-1662 2sccm BF3 String5: PH3 SDS-Low-Pressure Type VCR 1/2"; MFC Unit-1662 2sccm BF3 Beam-Profiler Type: Belt-Drive Gear-Types: Scan: Planetary Tilt: Planetary Source-Type: ELS4 IHC-Source without Vaporizer HV-Transformer: Silicon-Oil Light-Tower: red/yellow/green; no buzzer Main-Workstation Solaris SUN AXI 3HE (Special case) Second-Workstation Solaris SUN Sparc5 Software-Version: 5.1.4.1 Network: 24port 100MB Ethernet with Cisco Router-Kit Cell-Controller: 177 Type Notes: Upper-Rack Panel missing Clean-Room Table missing on frontside all 4 wheels on oil-isolation transformer are broken Minor modifications on tool tool was used 24/7 full in production between 15 and 230kv Energy If required, tool can be inspected on site, but no Power |
Get Quote |
