Karl Suss MA 150e TSA Completely refurbished Mask Aligner for Sale

-completely refurbished and with many new parts

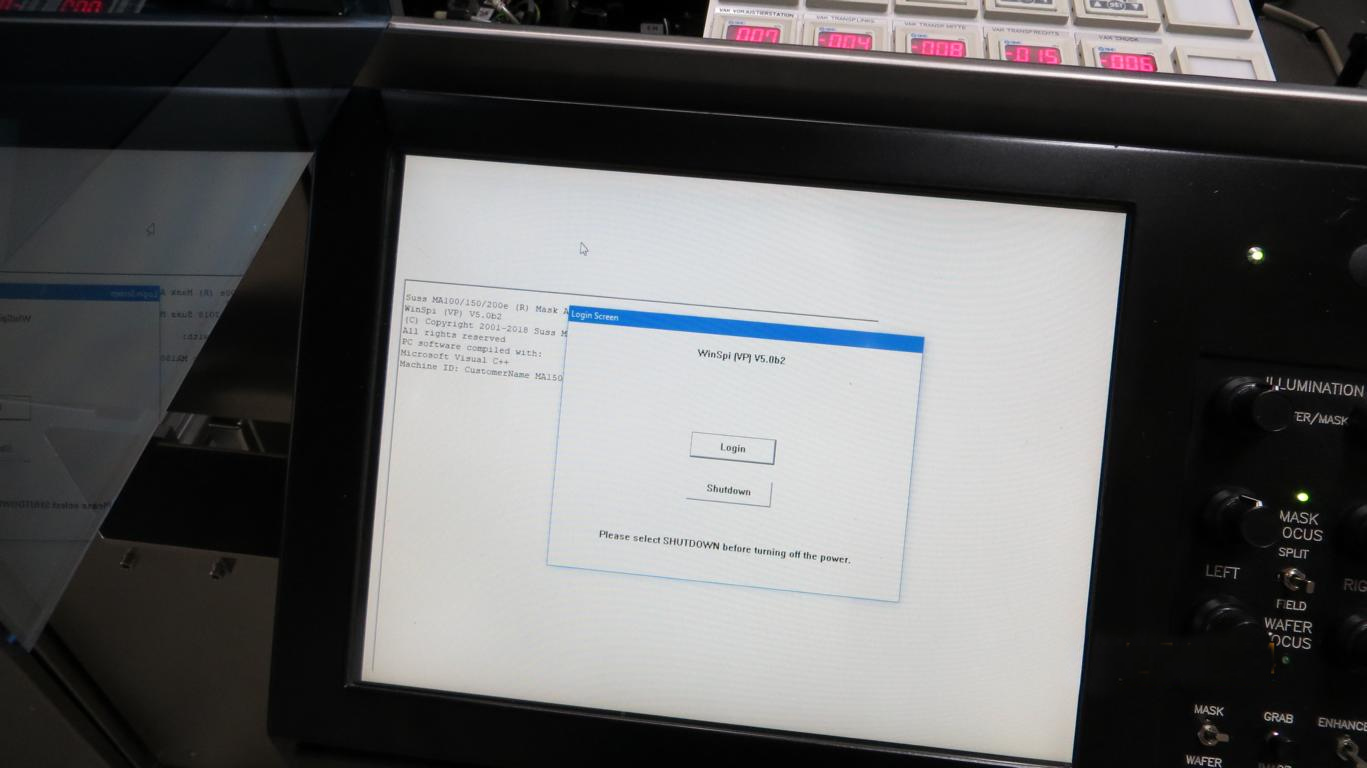

-mask aligner MA 150e with the latest Windows 10 software.

-I have added a couple of videos of this tool to my youtube channel, which show the machine and it's initialization. You can see them at the following internet links:-

https://www.youtube.com/watch?v=vrRXDHFzUTM

https://www.youtube.com/shorts/recAbg4cA5M

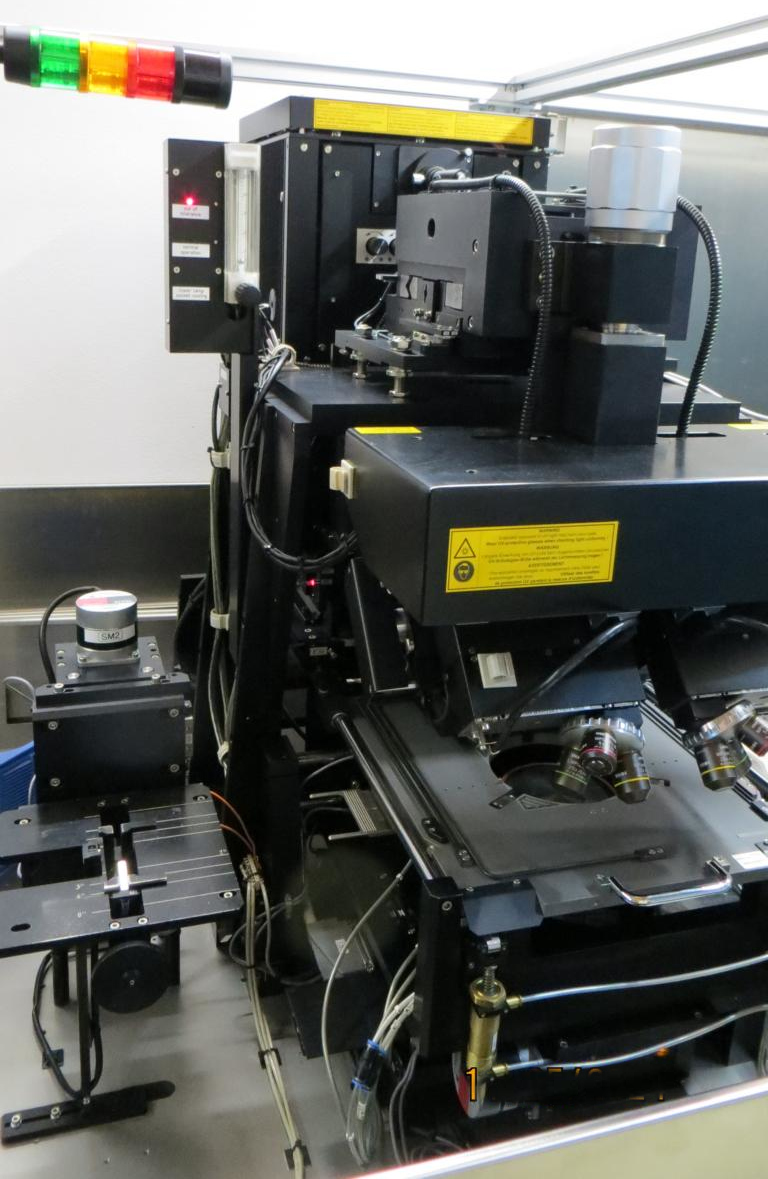

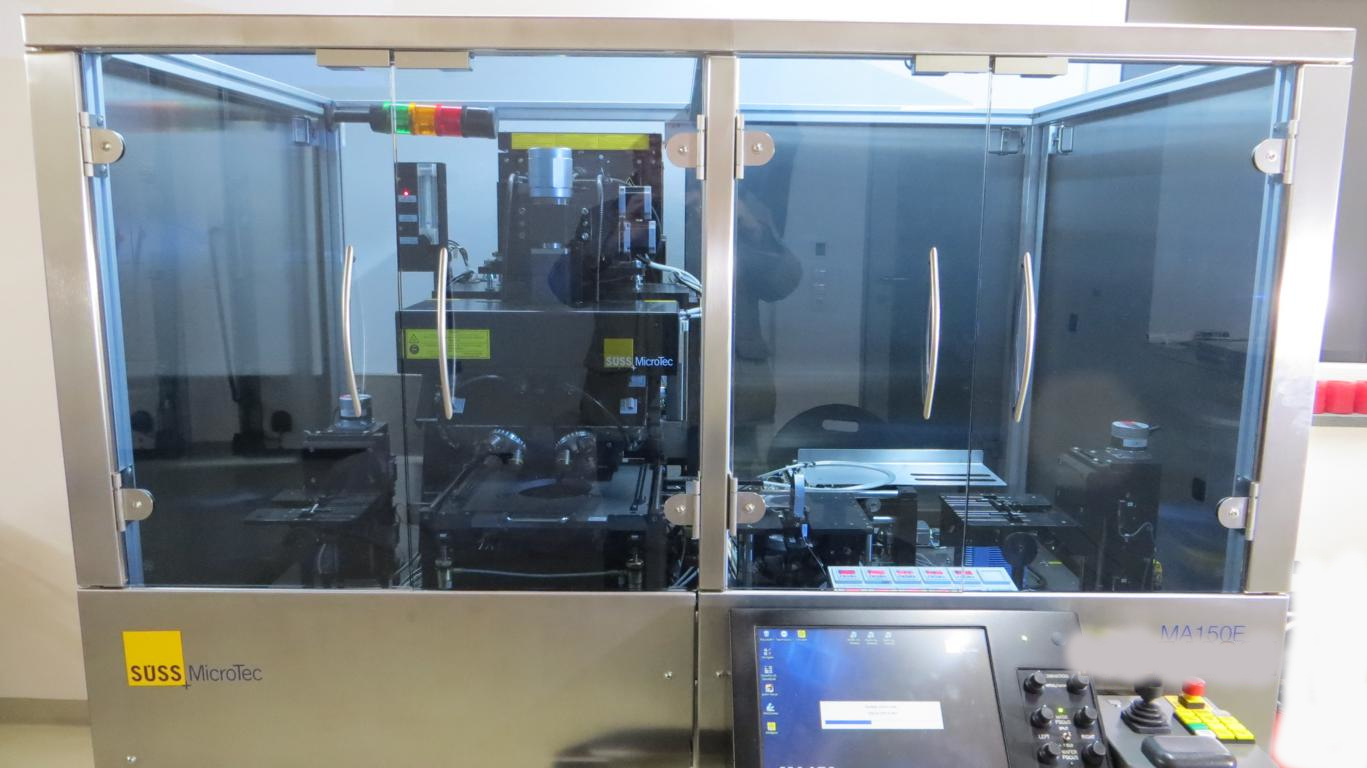

1 pc. Mask Aligner SussMicrotec MA100e/150e , Base machine built in 2010
TSA (Top Side Alignment)
The machine is a fully automatic cassette-to-cassette machine with pre-alignment.
- Remanufactured according to Suss Standard 2024 -
for Proximity-Contact, Soft-Contact, Hard-Contact, and prepared for Vacuum-Contact

Including:-

Pos.     Qty       Description                                                                                                                                 .

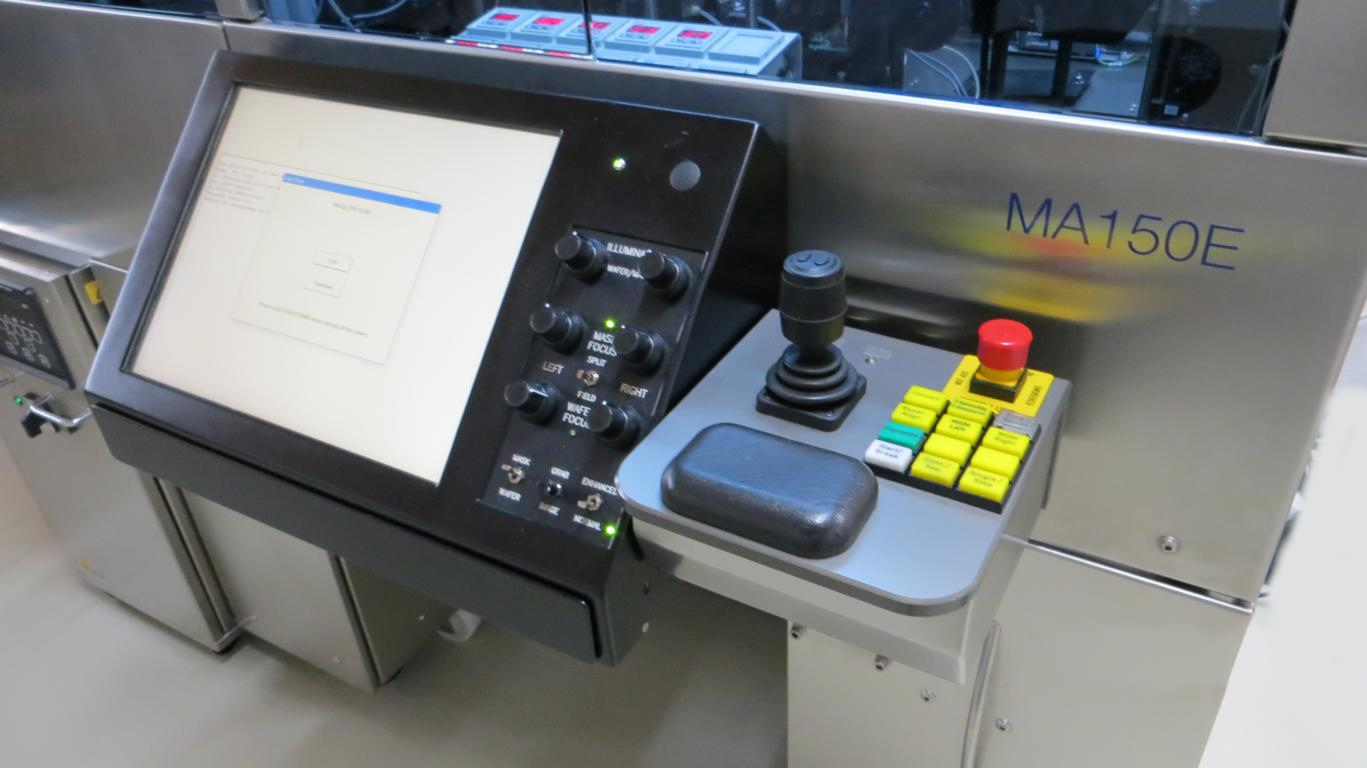

1             1             SUSS MASK ALIGNER MA150e Windows 10 based with  Suss AL /Autoalign System
2             1             Alignment System MA150e TSA
3             1             PC -Aut. Adjustment (Autoalignment System) Cognex 8100 ( Patmex ) TSA
4             1             Lamphouse unit LH 1000 with HP and 1000W  Hg-Lamp,
                              Intensity >25 mW/cm², Wavelength: 365 nm (I-line filter)

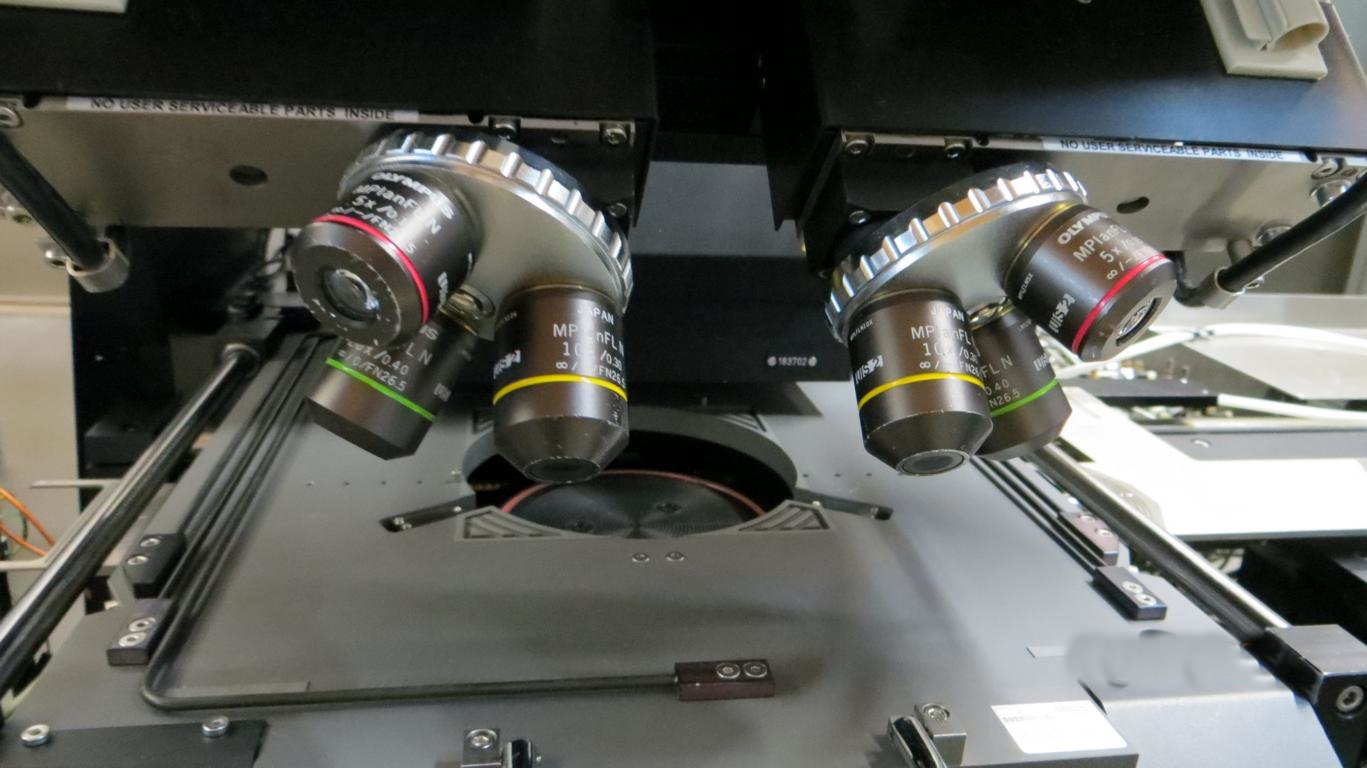

5             1             Suss DVM 6 dual video Microscope (2CCD–Cameras /set of rotating Objectives L+R)
6             2             Objective  5x
7             2             Objective  10x
8             2             Objective  20X
9             1             Transport Plates Kit MA150 / W100-150/Even
10           1             Exposure Chuck Prox/Cont W100
11           1             Mask holder MA 150/TL/Prox/Cont/W100 4” Chuck and 5” x 5” Mask holder
12           1             CIC1200 Lamp Power supply
13           1             Set of Exposure optics Typ A / UV400   350-450 nm ( g-, h-, i-line )
14           1             Non Contact Prealigner Station with IR – Sensor
15           1             Operators Manual MA 150e English (Digi.)

It is equipped with a 4 " Chuck and 5" X 5 "Mask Holder or with a 6" Chuck and 7 " x 7" Mask Holder.
You can choose to choose which startup kit should be installed on the machine.
The other tool is then delivered and included in the sales price.

Terms of payment: 100 % after ordering, before delivery

This Mask Aligner has the possibility “Direct Align” as option. If you need it, we can realize it for small extra cost.
