Varian Turbo-V 250 MacroTorr Turbo Pump DN ISO 100 Type for Sale


SDI fabsurplus.com is pleased to announce the availability of the following listed used Varian Turbo-V 250 MacroTorr Turbo Pump DN ISO 100 Type. This Varian Turbo-V 250 MacroTorr Turbo Pump DN ISO 100 Type is available for immediate sale. Please click on the "Send More Details" button if you'd like to get more details, photos and specifications of this Turbo Pump DN ISO 100 Type and your request will be forwarded to our customer representatives automatically. Crating, refurbishment and delivery can be quoted on request.


Varian Turbo-V 250 MacroTorr Equipment Details

SDI ID: 84082
Manufacturer: Varian
Model: Turbo-V 250 MacroTorr
Description: Turbo Pump DN ISO 100 Type
Version: Pump
Vintage: 01.06.1999
Quantity: 1
Sales Condition: as is where is
Lead Time: immediately
Sales Price (each): 3,999 USD
Comments:

New in original packaging.

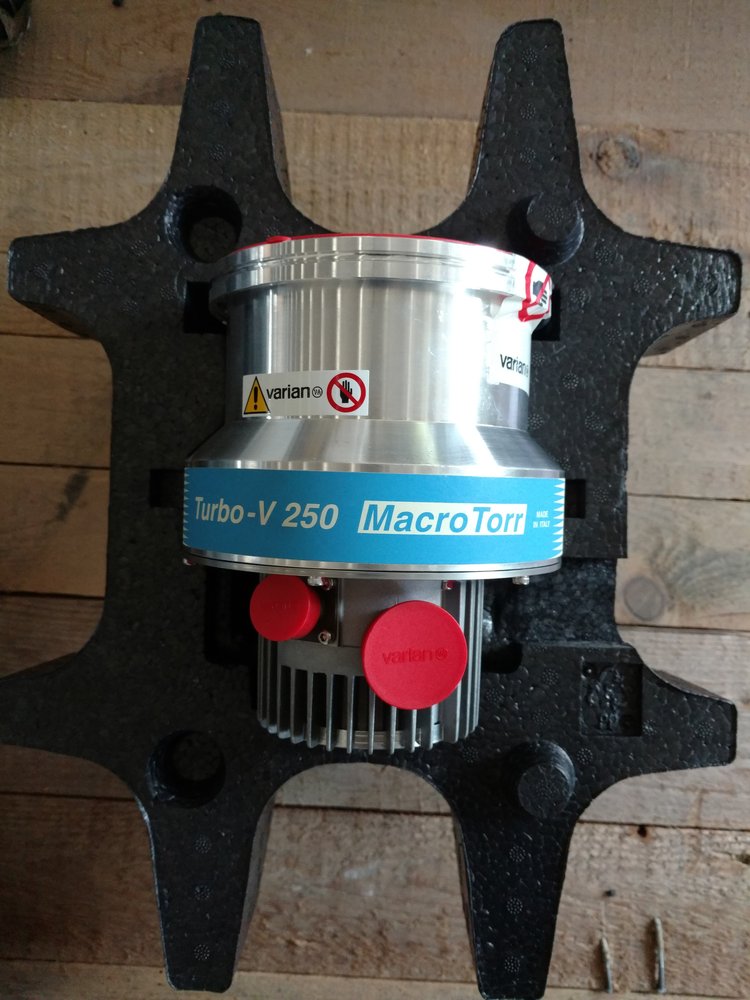

The packaging has been opened in order to take photos.
Location: Avezzano (AQ) 67051 Italy.
CE marked
Model 9699007 S024
Inlet flange is DN ISO 100 type

S/N 85077

DIMENSION: 40 cm X 30 cm  X 32(H) cm

WEIGHT: 4 KG CA



Pumping speed (l/s)
N 2 : 250 l/s
He: 220 l/s
H 2 : 200 l/s
Compression ratio N 2 : 2 x 10 8
He: 1 x 10 5
H 2 : 1 x 10 4
Base pressure* with recommended mechanical fore-
pump:
2 x 10 -10 mbar (1.5 x 10 -10 Torr)
with recommended diaphragm fore
pump:
2 x 10 -8 mbar (1.5 x 10 -8 Torr)

Inlet flange
DN 100 ISO
Foreline flange NW 16 KF
Rotational speed 56000 RPM
Start-up time < 3 minutes
Recommended
forepump Two stage rotary pump SD-40
Diaphragm pump: MDP 30
Operating
position any
Cooling
requirements Natural air convection
Forced air or water optional
Operating ambient
temperature + 5° C to + 35° C
Coolant water flow: 30 l/h (0.13 GPM)
temperature: + 10° C to + 30° C
pressure: 3 to 4 bar
Bakeout
temperature 120° C at inlet CF flange maximum
80° C with ISO flange
Vibration level
(displacement) < 0.01 μm at inlet flange
Noise level 45 dB (A) at 1 meter
Input 58 Vac, three phase, 933 Hz
Lubricant permanent lubrication
Storage
temperature - 20° C to + 70° C
Weight kg (lbs) ISO: 7.5 (3.4);
