Mechanical Devices Max TC Power Plus Device temperature Forcer, -75 C to 200 C for Sale

-MaxTC Power Plus US Square Head (axial)
-Thermal Force System Power Plus
-from -75°C to +200°C
-with Square Thermal Head
-axial hose / US Version

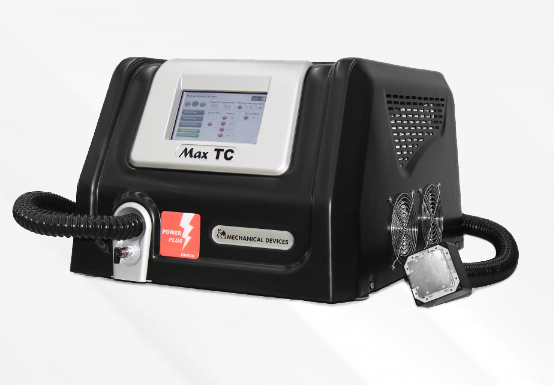

-The photo shown is a stock photo, not a photo of the actual device.

MD Thermal control units were designed with high efficiency and flexibility in mind, allowing for customization to suit different package and interface variations. The system allows for temperature forcing across a wide range of device sizes and types, whether socketed or soldered to the board. With state of the art design and technology MD units stimulate the DUT to the desired temperature precisely and consistently via direct contact with a thermal head’s tip.
The well proven thermal head methodology creates a stable temperature control environment right where you
need. The pneumatically driven thermal head makes direct contact with the IC device providing great power
handling and precise temperature control.

Features:
Temperature range -75°C to 200°C
Cooling power -50°C @ 400W (Tc)
Temperature stability 0.2°C
Self-contained liquid free operation
Quiet and portable
Adapt to most packages and sockets
Condensation FREE
Maintenance FREE
Remotely controlled via an ethernet
Fully programmable for automation
Tj and Tc control
Environmentally friendly operation
