Eurotherm 2408F Temperature Controller for Sale

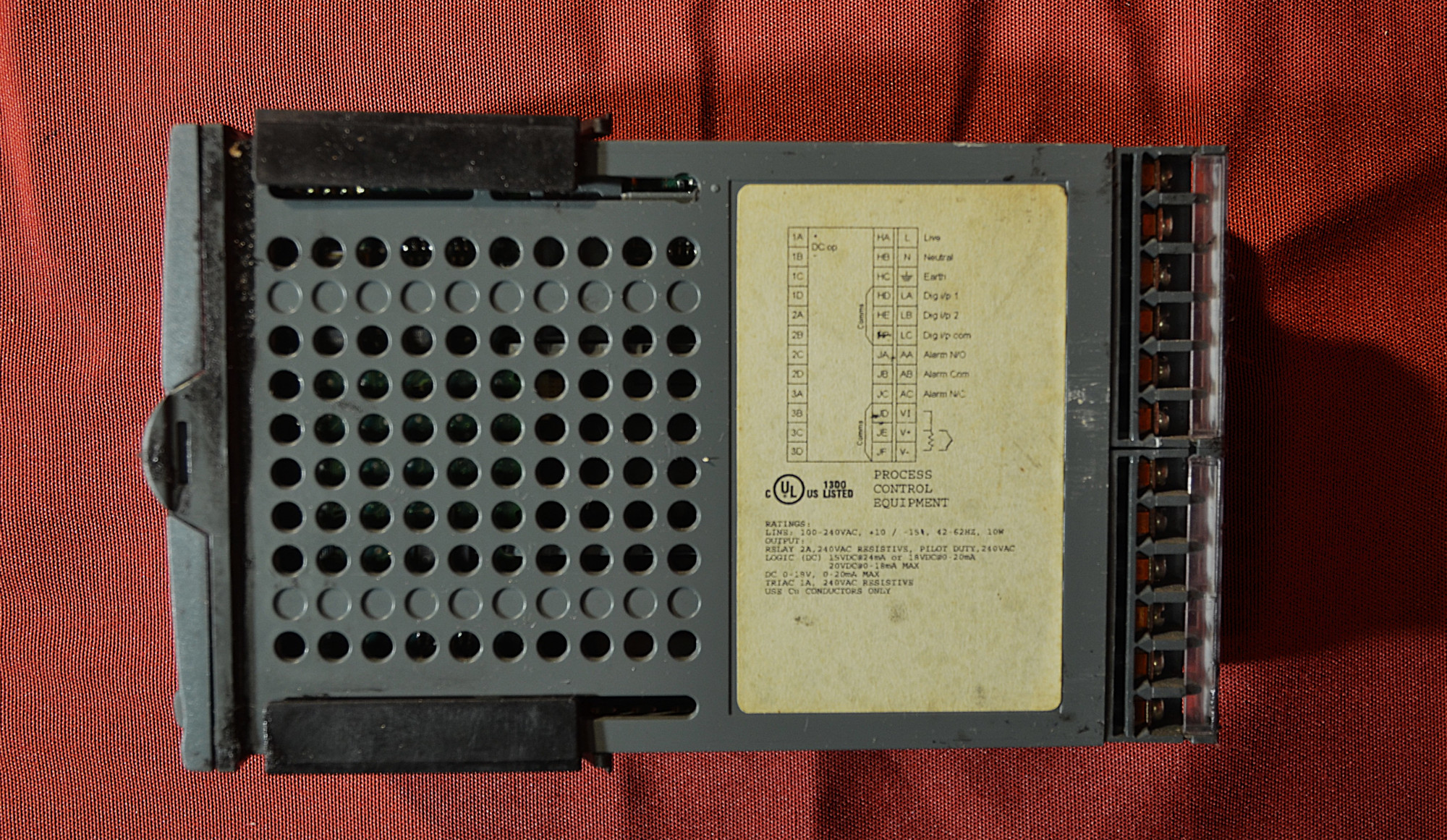

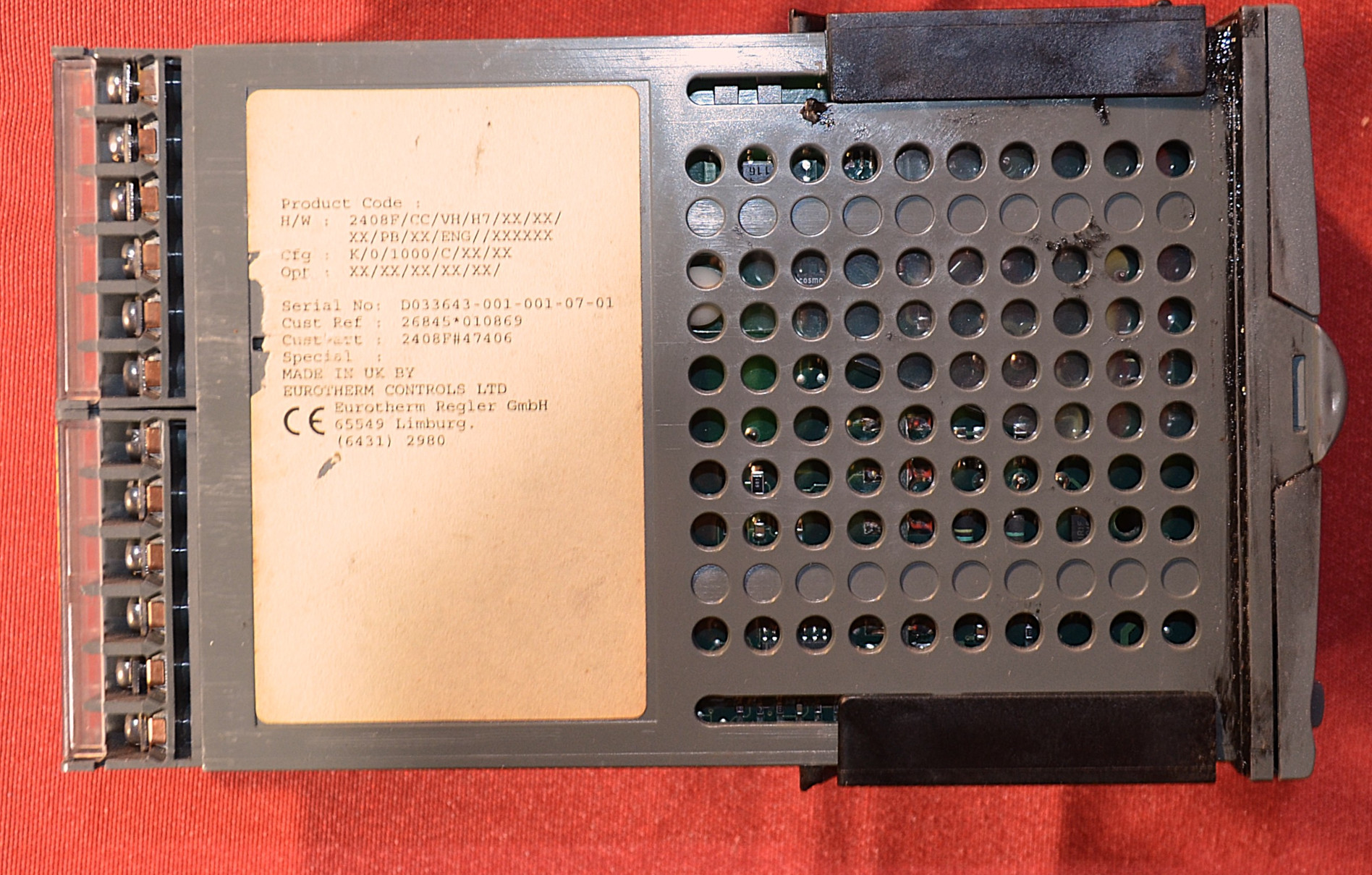

These are used controllers, which where removed from a working Roth and Rau SiNa PECVD

Manufacturer: Eurotherm
Model: 2408F
Description: Temperature Controller

The Eurotherm 2408F 1/8 DIN unit is a high stability controller with an extensive range of options. Either PID, ON/OFF or Motorized valve control can be configured, satisfying both electrical and gas heating applications amongst others.


FEATURES:

    High stability control
    Up to 20 programs
    16 segments
    Heating and cooling
    Customisable operation
    Heat current display
    Multiple alarms on a single output
    DC retransmission
    Digital Communication
    Modbus RTU
    Profibus DP network
    Devicenet network



IDEAL FOR:

    Single and multi-zone furnaces
    Kilns
    Environmental chambers
    Simple ratio
    Humidity
    Chemical applications
    Pharmaceutical applications
    Glass furnaces and lehrs

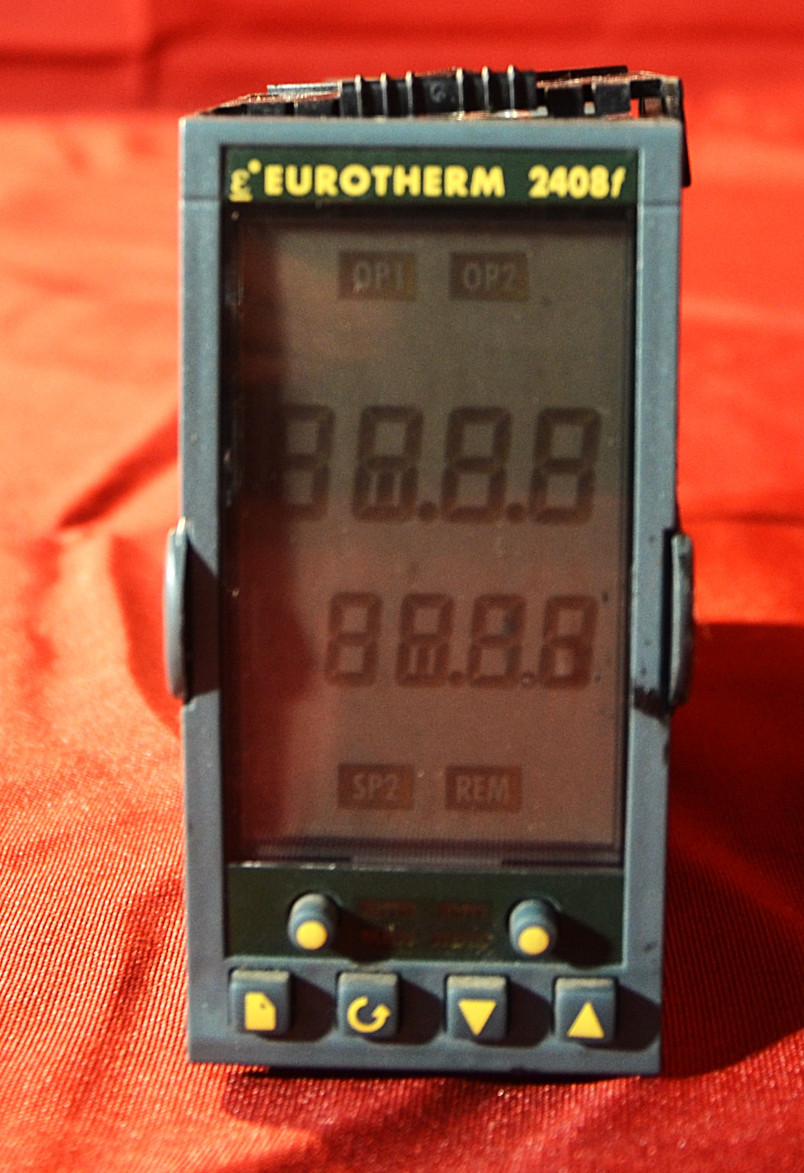

Eurotherm 2408F Temperature Controller / Programmer

        Versatile, high stability temperature or process controllers
        Self-tuning with overshoot inhibition
        Setpoint programmer providing up to 20 programs of 16 segments
        Heating and cooling outputs
        Modular hardware
        Customized operator display
        Digital communications



A setpoint programmer with up to 20 programs of 16 segments is available.


The controllers accept a range of plug-in modules, heating, cooling, or process outputs, analog retransmission, second process value input and remote setpoint.


Precise control

An advanced PID control algorithm gives stable ‘Straight-line’ control of the process. A one-shot tuner is provider to set up the initial PID values and to calculate the overshoot inhibition parameters. In addition an adaptive tuner will handle processes with continually changing characteristics.


Alarms

Up to four process alarms can be combined onto a single output. Alarms can be full scale high or low, deviation from setpoint, rate of change or load failure alarms.


Digital communications

Available with either EIA485 2-wire, 4 wire or EIA232. With industry-standard protocols including: Modbus, DeviceNet®, Profibus DP, and Eurotherm® Bisync.
