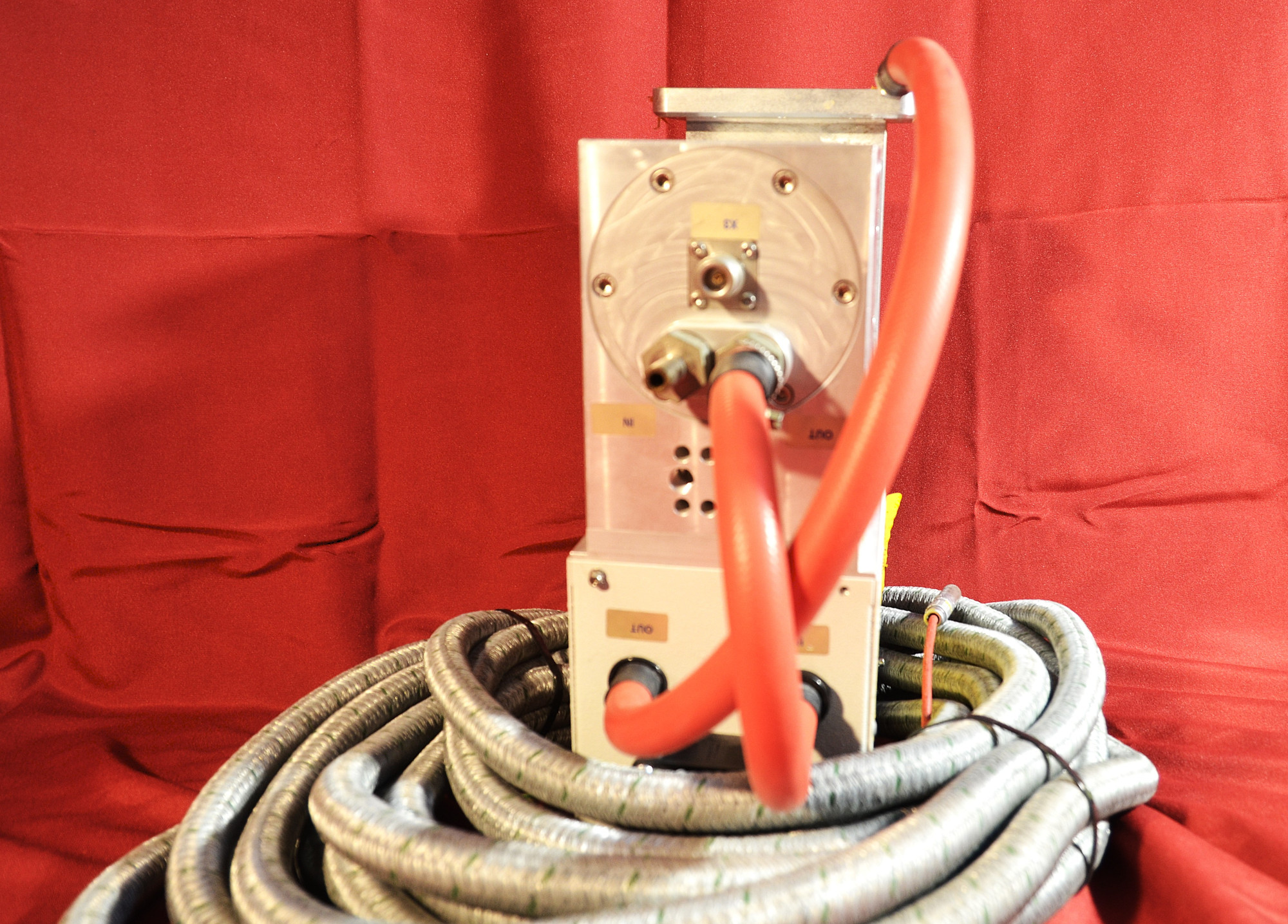

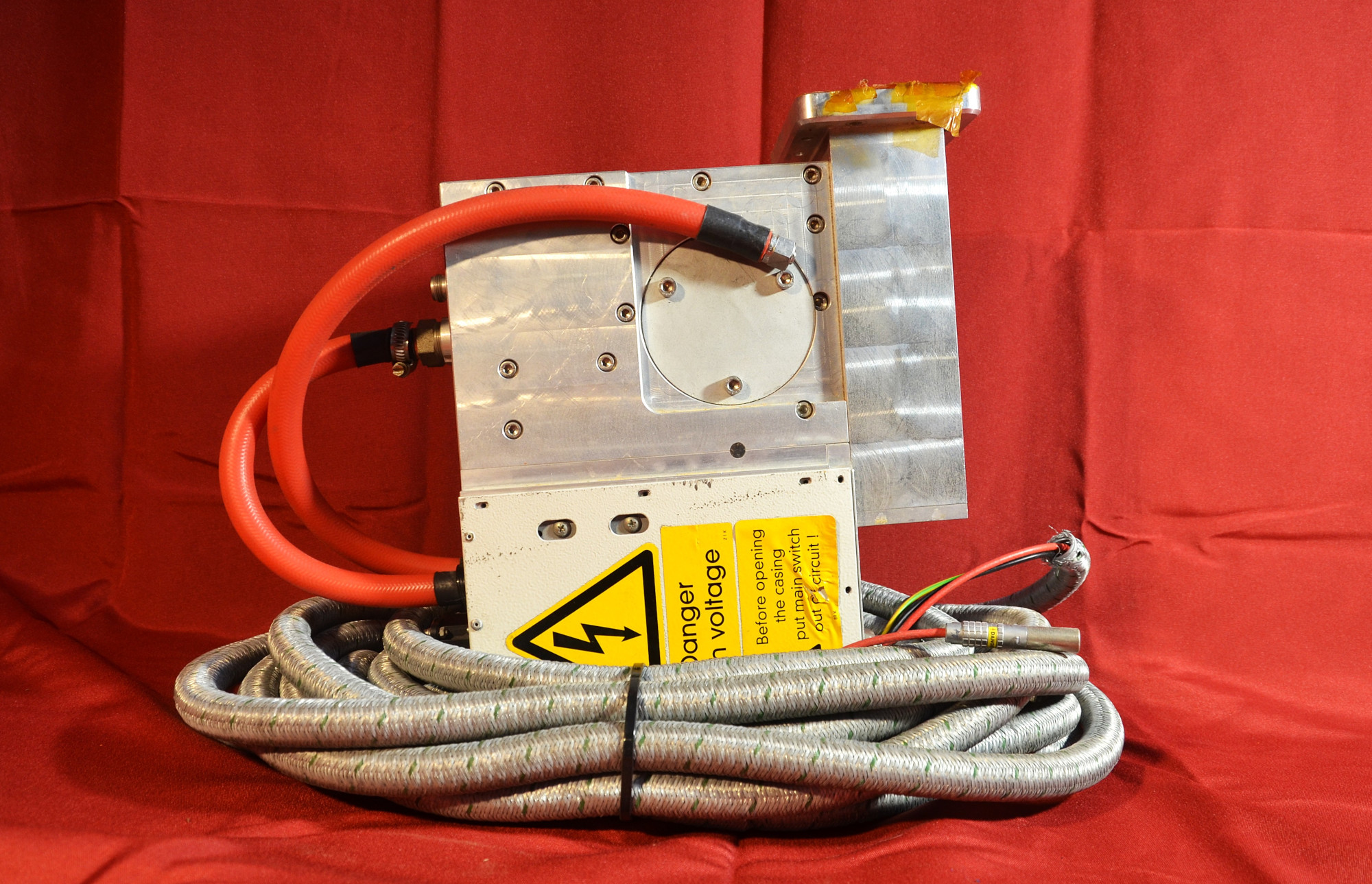

Muegge MH2000S-215BB 2.45 GHz Magnetron Head for Sale

-Removed from a  Roth and Rau SiNa Plus PECVD system in 2008

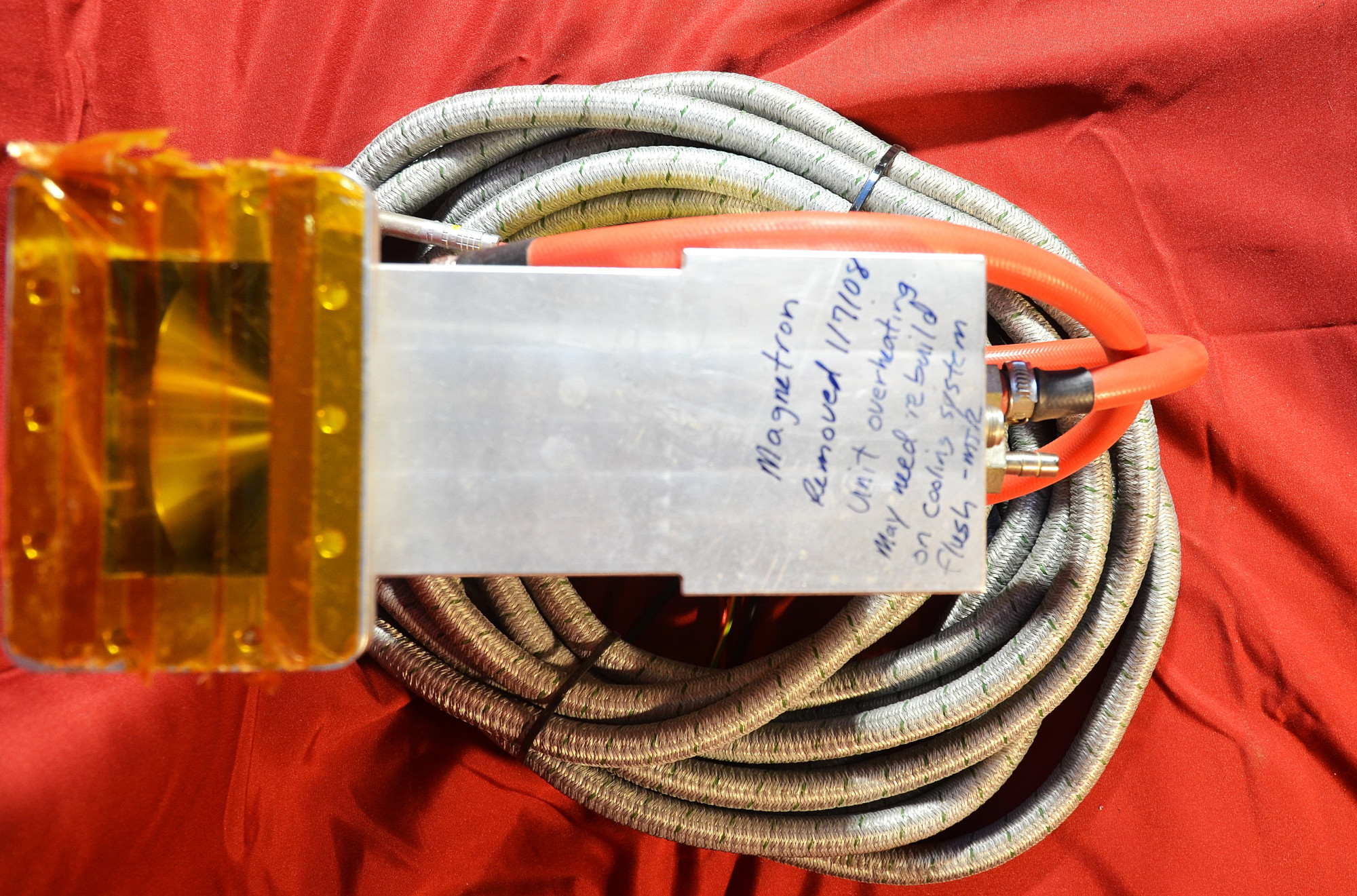

-Marked as an overheating unit, which may need a rebuild on the cooling system.

-Anode Voltage (Uam), 4000V
Anode Current (I), 725mA
Output Power (P.out), 2000W
Frequency (f.out), 2.45 GHz

WEIGHT: 21.5 kg
Height: 45 cm
Width: 34 cm
Depth: 16 cm

-LOCATED AT OUR AVEZZANO (AQ) 67051 iTALY WAREHOUSE

-FULL TECHNICAL DETAILS / MANUALS /SCHEMATICS ARE AVASILABLE ON REQUEST.

Technical Summary of the Microwave Power Supply and Waveguide system:-

The Muegge microwave generator system comprises the following components:-
Microwave Power Supply: MX4000D1-110LL (Available for purchase separately)
Magnetron Head: MH2000S-215BB

Technical characteristics:
HF Frequency:2.450 GHz ± 10 Hz
CW HF Output Power: 2000 W max (0–100%)
Pulse HF Output Power: 4000 W max (up to 500 Hz)
Ripple: <30%
Waveguide Flange: UDR26

Magnetron Type: MB2565A-120BH with
Anode Voltage: -3500 V
Anode Current: 725 mA

Cooling:
Microwave Power Supply:
Air-cooled and Water-cooled: 3 l/min, 3 bar max
Magnetron Head:
Air-cooled and Water-cooled: 3 l/min, 3 bar max

Mains Power Supply: 3x 400 V / 50–60 Hz / 6 A on plug X1
Auxiliary Power Supply: 230 V / 50–60 Hz / 2 A on plug A1
Programming I/F : RS232 serial interface
Software System Type: CAN Bus Interface via CAN plug

Magnetron Power Supply Case Characteristics: 19" plug-in case, 460 mm depth

Magnetron Head Assembly Characteristics:
Case: Closed Box, Water Cooled.
Waveguide Flange: PDR26
Dimensions:LXWXH 230×125×300 mm
