SEW-Eurodrive R67DT100LS4 / BR164HR-2WE GEAR MOTOR Gearbox type: R Series (coaxial) + DUTY INVERTER MOTOR DFT100LS4BH64HR-2WE: for Sale

This product will be sold together with the SEW-EURODRIVE – DUTY INVERTER MOTOR
DFT100LS4BH64HR-2WE, because it is part of a single, pre-assembled unit.

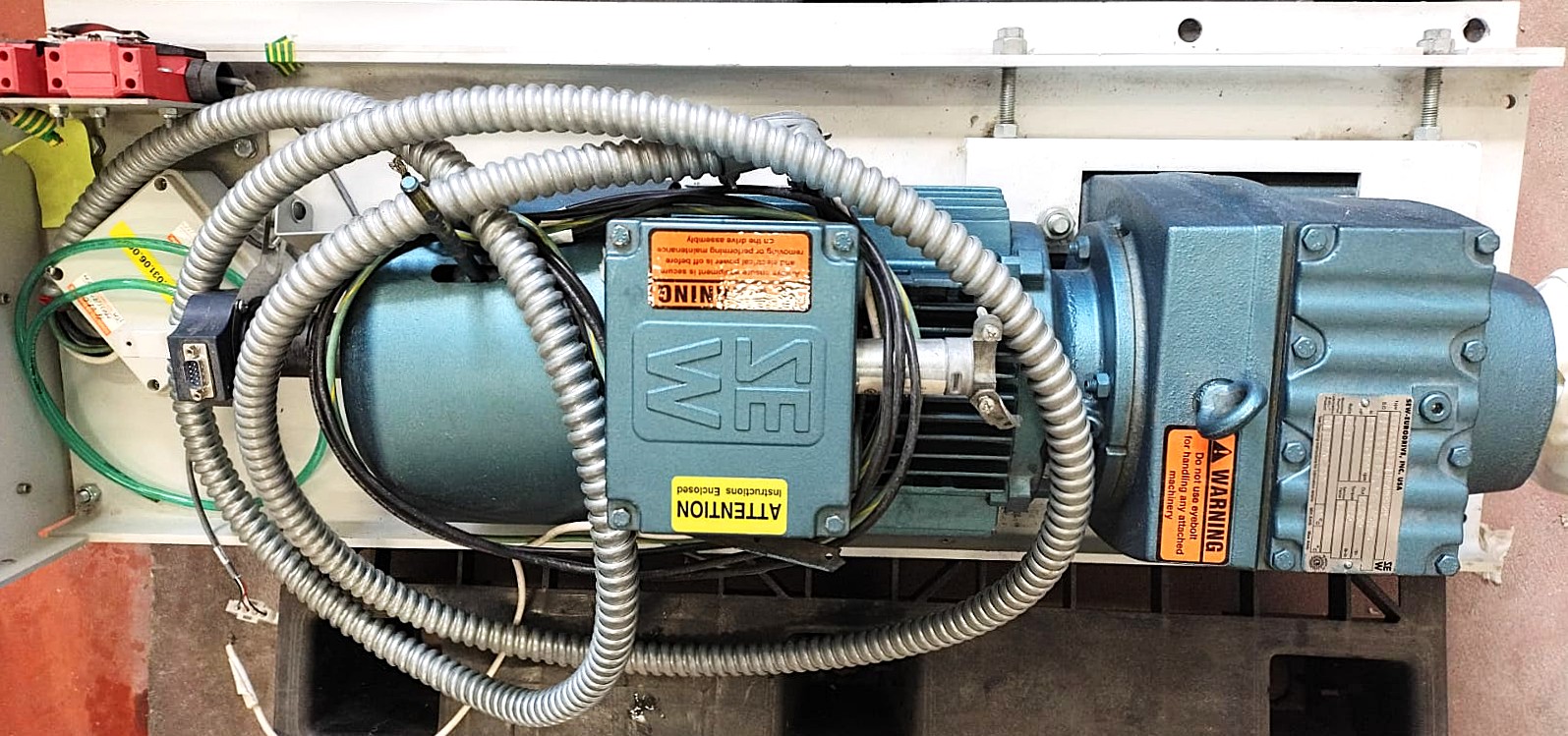

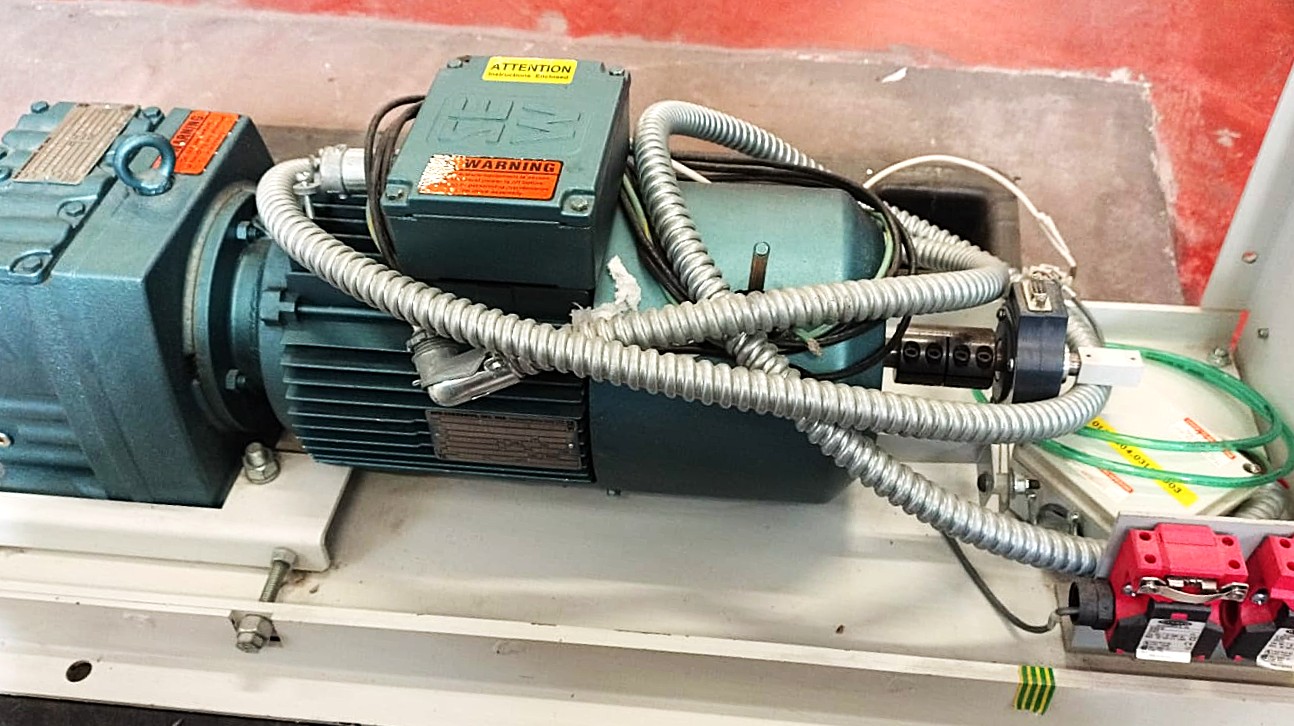

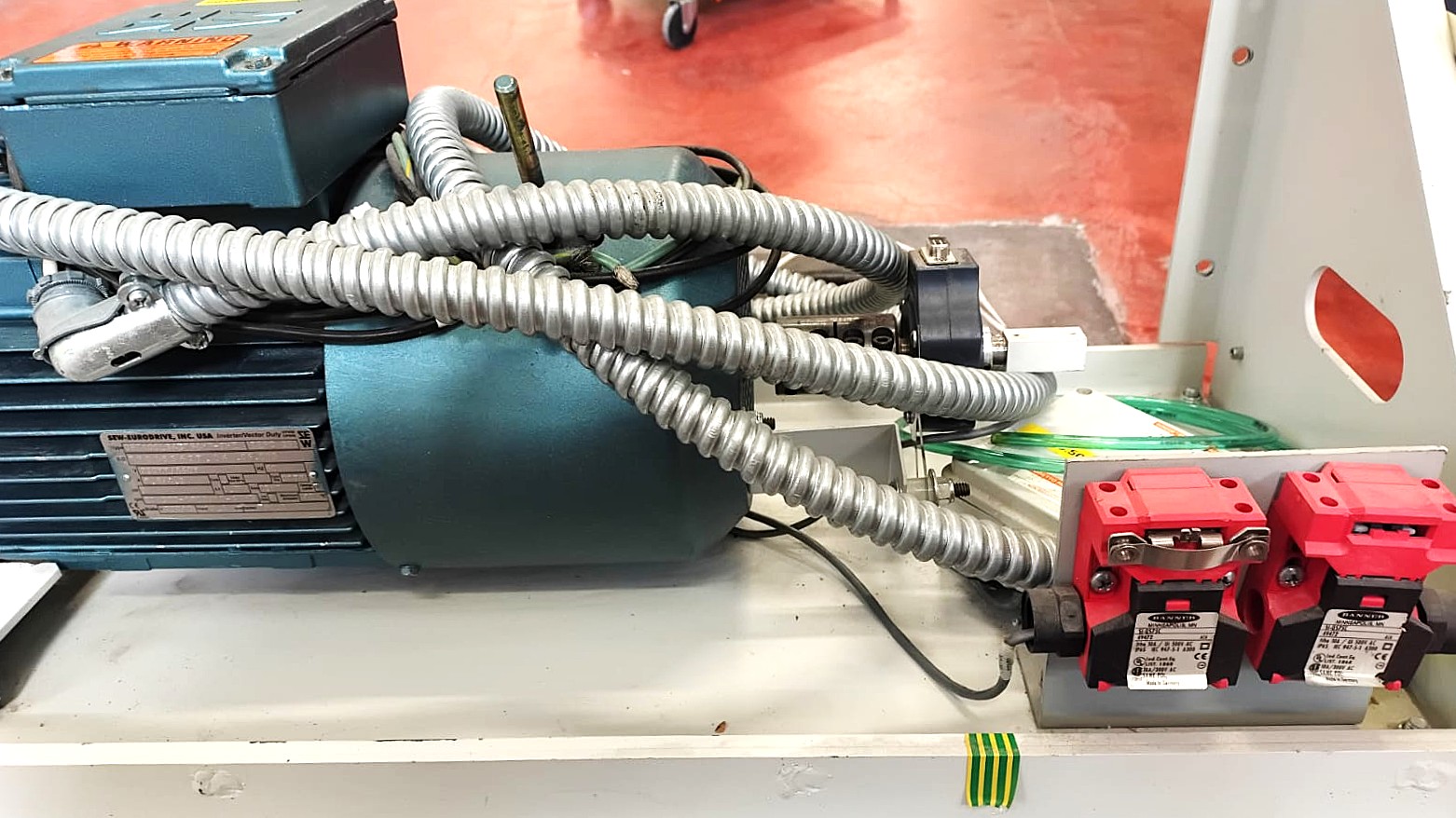

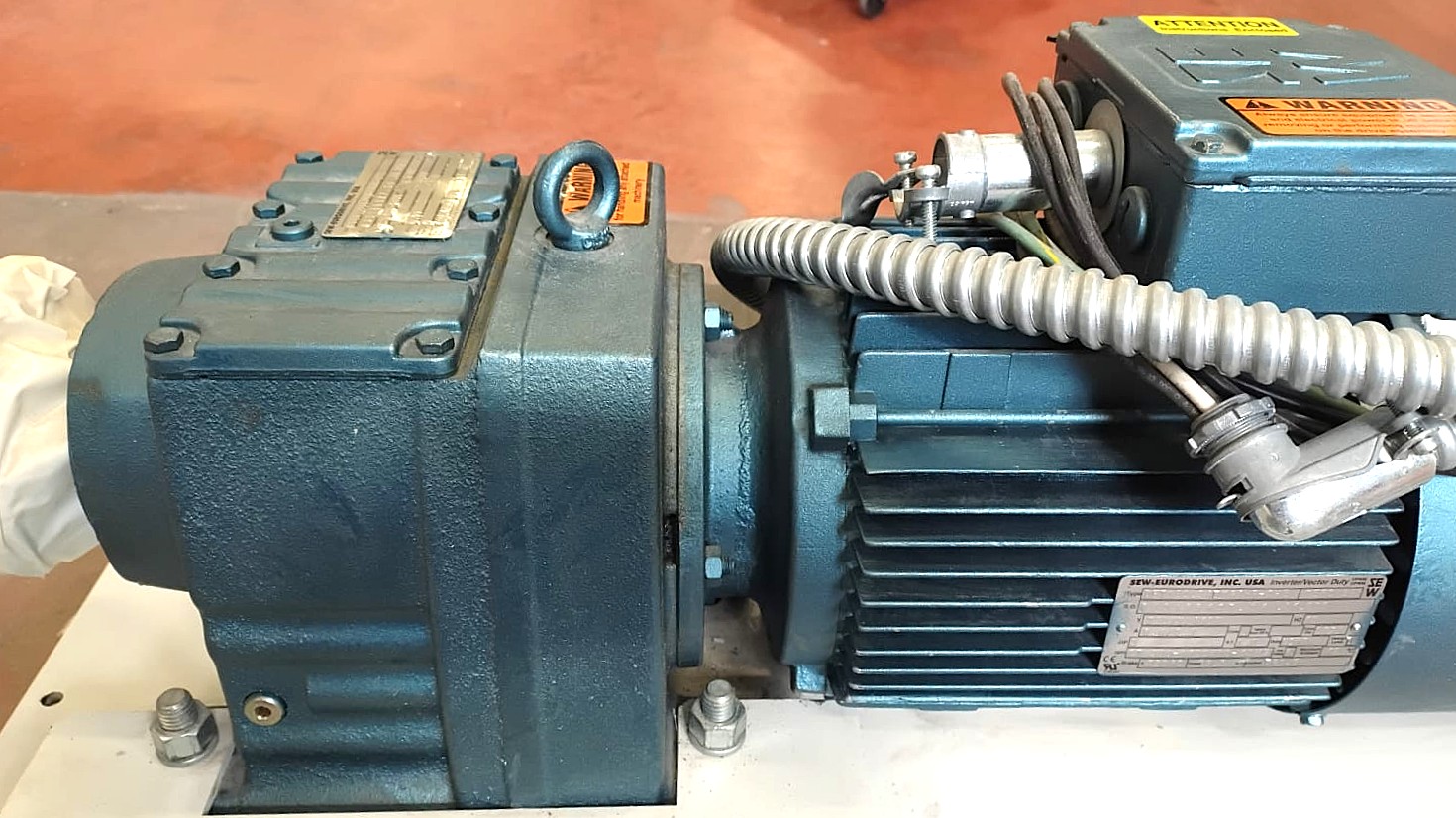

See attached photos showing the item current condition.

Technical specifications of both products:

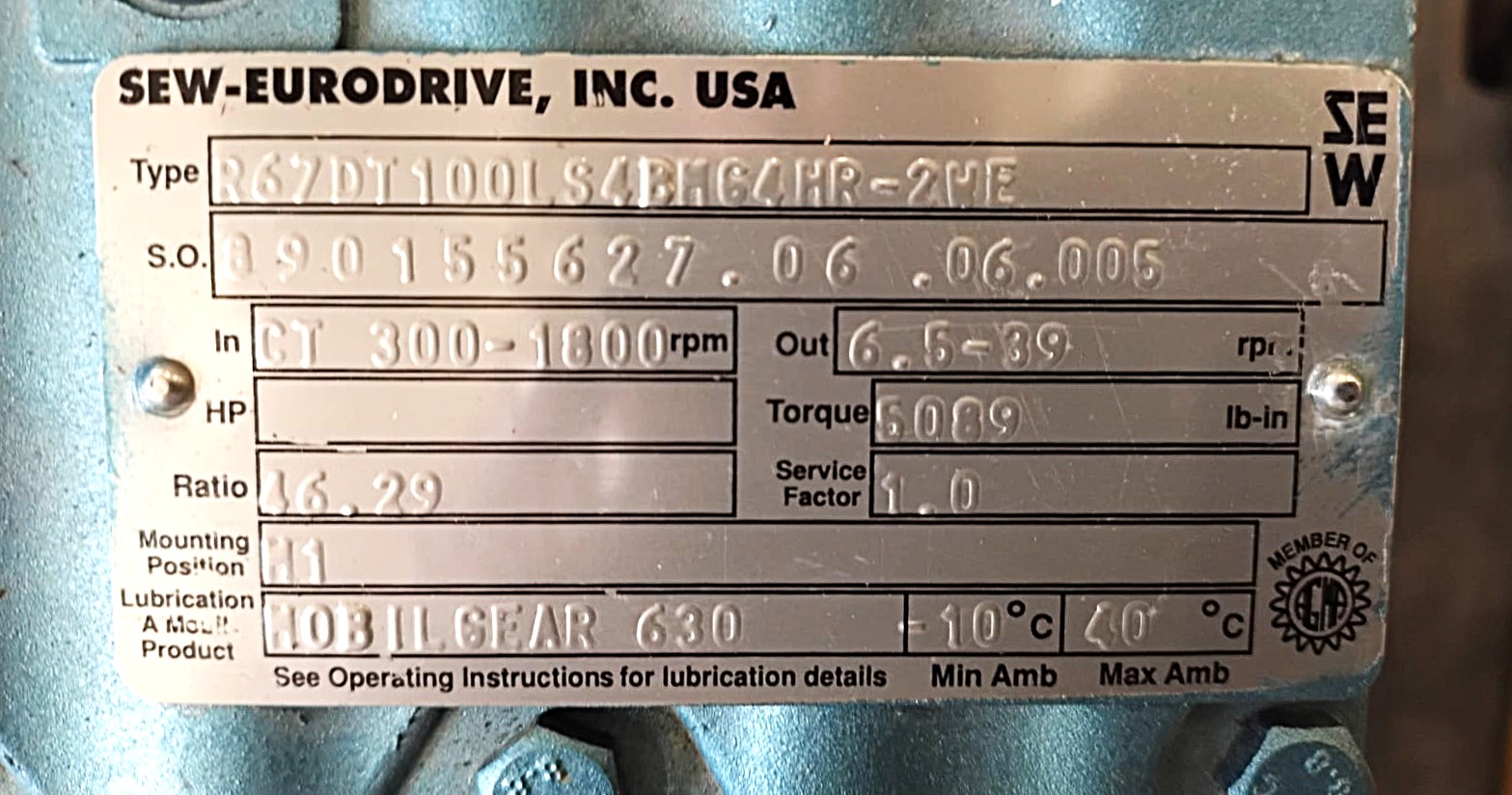

SEW-EURODRIVE – R67DT100LS4/BR164HR-2HF GEAR MOTOR

MECHANICAL DATA
Gearbox type: R Series (coaxial)
TEFC  3HP
Size: R67
Ratio: 16.29 : 1
Input speed: 300–1800 rpm (depends on the motor)
Output speed: 6.5–39 rpm
Rated torque: 5089 lb-in (≈ 575 Nm)
Torque factor Duty: 1.0
Mounting position: H1
Lubricant: Mobil Gear 630
Ambient temperature: –10°C / +40°C
DIMENSIONS (typical R67)
(SEW standard values for R67, variable according to BR164HR-2HF configuration)
Output shaft diameter: 35 mm
Shaft length: 80 mm
Foot center distance: 160–200 mm
Gearbox weight: 28–35 kg (without motor)
PERMISSIBLE LOADS
Max. radial load: 4,000–4,500 N
Max. axial load: 2,000–2,500 N
CONSTRUCTION FEATURES
EN-GJL gray cast iron housing
Case-hardened and ground gears
Protection class IP55 / IP65 (at (depending on configuration)
Oil bath lubrication

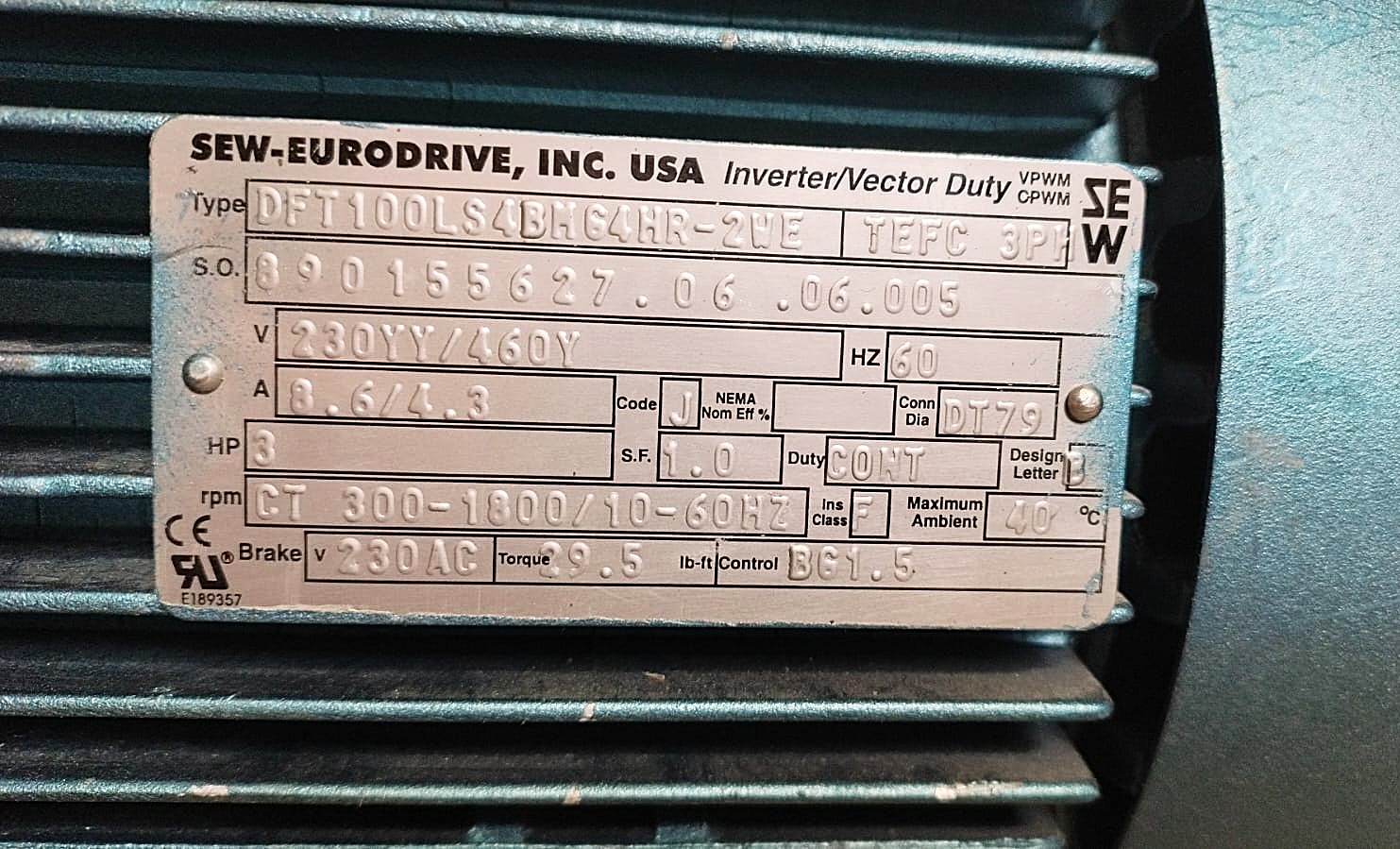

SEW-EURODRIVE – DUTY INVERTER MOTOR
DFT100LS4BH64HR-2WE:
ELECTRICAL DATA
Power: 3 HP (≈ 2.2 kW)
Voltage: 230V / 460V
Current: 8.6 A / 4.3 A
Rated frequency: 60 Hz
Inverter range: 10–60 Hz
Rated speed: 1800 rpm
Controlled speed: 300–1800 rpm (CT)
Duty type: Continuous (S1)
Insulation class: F
Efficiency: NEMA Premium (variable by configuration)
MECHANICAL DATA
Motor type: DFT (inverter/vector duty)
Size: 100LS
Shape Construction: B14/B5 (depends on HR-2WE part number)
Shaft diameter: 28 mm
Shaft length: 60 mm
Motor weight: 20–24 kg
BRAKE
Brake type: BC1.5
Brake voltage: 230 VAC
Brake torque: 9.5 lb-ft (≈ 12.8 Nm)
CONSTRUCTION FEATURES
TEFC (Totally Enclosed Fan Cooled) motor
IP55 protection class
Reinforced inverter windings
Integrated thermal sensor (PTC)

Overall dimensions:

Weight: 60 kg

Height: 40 cm

Depth: 40 cm

Width: 100 cm
