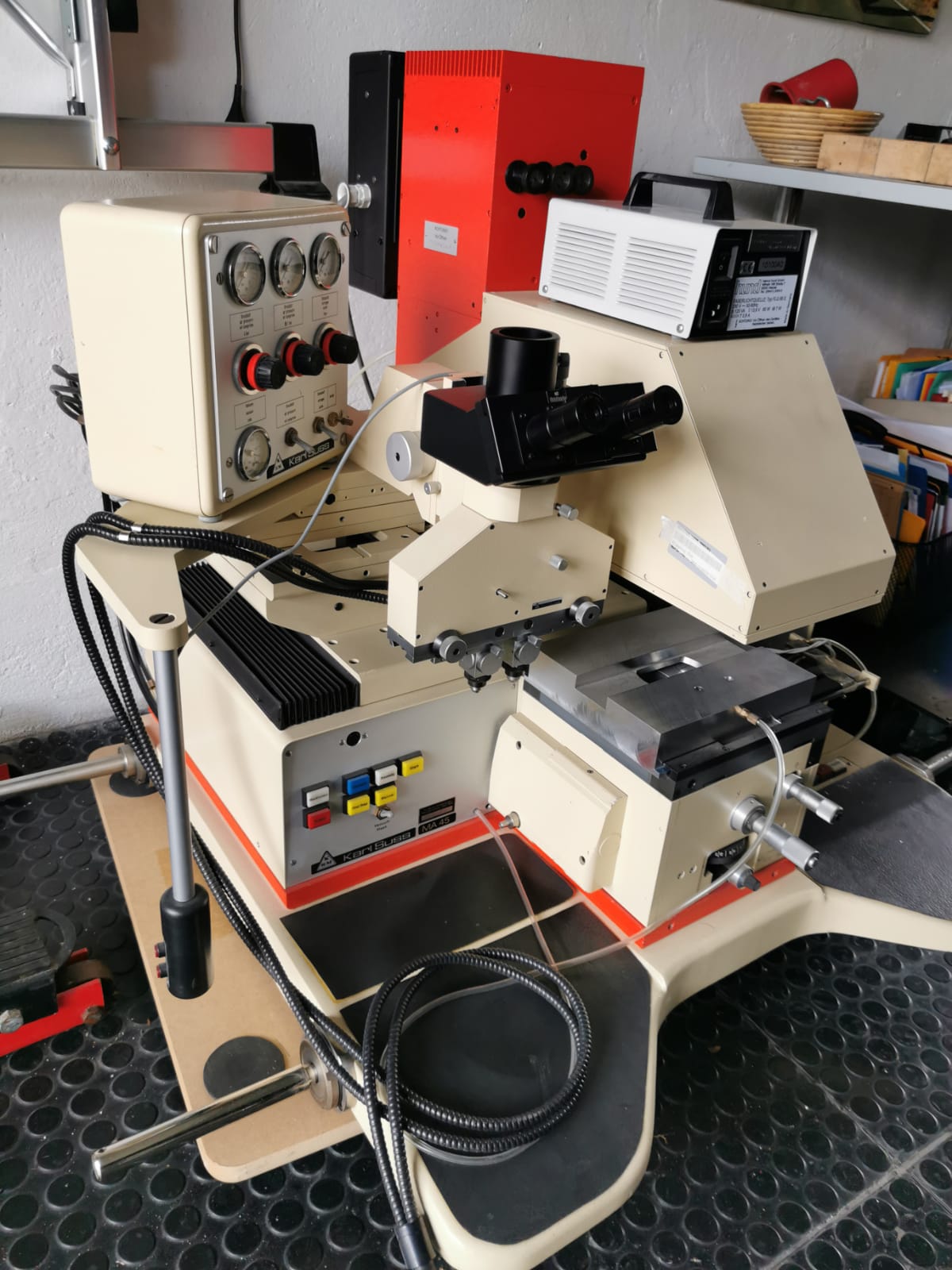

KARL SUSS MA45 Mask Aligner for Sale


SDI fabsurplus.com is pleased to announce the availability of the following listed used KARL SUSS MA45 Mask Aligner.
Please click on the "Get Quote" button at the end of the MA45 description, if you'd like to get a quotation, photos and specifications of this Mask Aligner, and your request for this equipment will be forwarded to our SDI sales representatives automatically.
This KARL SUSS MA45 Mask Aligner is available for immediate sale.
Crating, refurbishment and delivery for this equipment can be quoted on request.


KARL SUSS MA45 Equipment Details

SDI ID: 108945
Manufacturer: KARL SUSS
Model: MA45
Description: Mask Aligner
Version: Up to 100 mm
Vintage: Inquire
Quantity: 1
Sales Condition: inquire
Lead Time: immediately
Sales Price: Inquire
Comments:

1 pc. Mask Aligner Karl Suss MA45 – inclusive Service and Function tested.

A Video of the system in operation has been uploaded and is visible at the following link:-

https://youtube.com/shorts/0X2oKGzcruI?feature=share
Prepared for Hard- and Softcontact
Mask Aligner for manual Alignment
(Substrates up to max. 100 x 100 mm, 4” Wafer)
Manuel Loading of Masks und Substrates
Adjustment by Micrometerbolts
Adjustment by Splitfield Microscope
Light source for various Spectral Ranges UV 300-400
Diffraction Optics UV 400

Base machine specification:
Base Machine with mechanical, pneumatic and electric equipment
X,Y, Theta und Z Adjustment with WEC-Head
(WEC-Head and Micrometerbolts for Rough and Fine Adjustment)
Lamphouse LH 350W

Optics equipped with:
Ellipsoidal Reflector
Cold Light Mirror UV 400
Diffraction Optics UV400
Diversion Mirror 45° (LH 350)
Frontlens 100 mm x 100mm
Lamp HBO 350 W/S
Power Supply CIC500 incl. Ignition Box

Splitfield Microscope
1 Set Oculars, 1 Set Objectives (customer wish)
1 Set Fibre Optics for Microscope Illumination
1 x Exposure Chuck 100 x 100 mm (4”)
1 x Mask Holder M-5”, S-4”
Checked through specialist, full functional, no missing parts.
