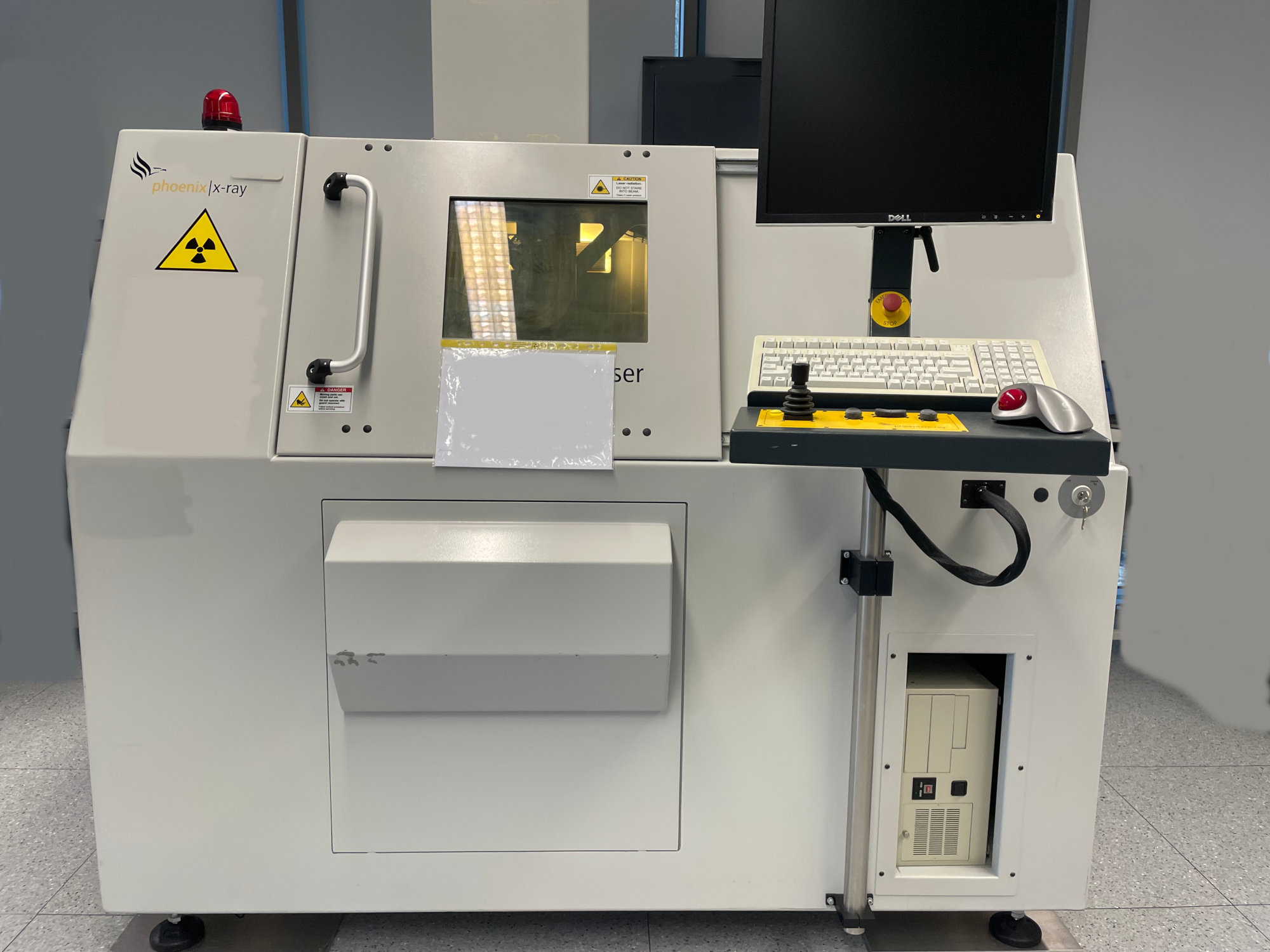

PHOENIX NANOMEX 160 NF X-RAY INSPECTION SYSTEM for Sale

Currently installed.

Not fully operational, due to the system has a defective stage X-drive

. Can be inspected by appointment. Price: Please make best offer.

-SYSTEM DOCUMENTATION IS INCLUDED, SPARES INCLUDED.

Has a CE mark
Configuration:-

CUSTOMS TARIFF NUMBER: 90221900

PCBA Analyzer 160NF Specifications
Environmental operating conditions
Operating temperature: 10°C – 30°C
Humidity: 25% – 85% F, non-condensing

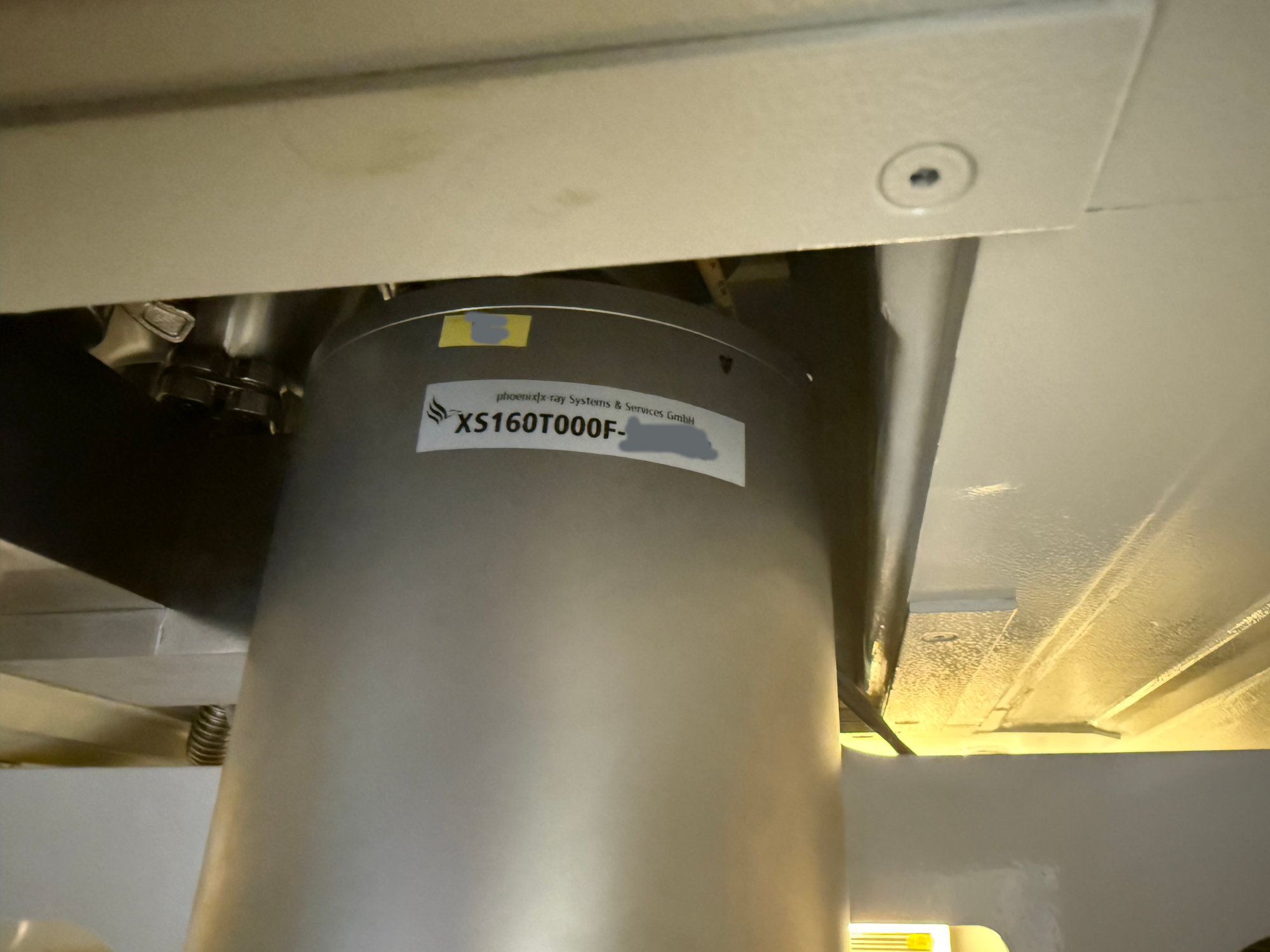

X-ray parameter
High-voltage: 10 kV – 160 kV
Tube current: 5 μA – 500 μA (20W Isowatt)
Tube current (optional): 5 μA – 800 μA (20W Isowatt)
Tube window: Material Beryllium (400 μm deep); Also available in Aluminum
Useful beam angle: approx. 180°
Feature recognition: ≤ 1 μm
Leakage radiation: ≤ 1 μSv/h
Product description
Easy and quick adjustment of tube voltage and tube current
Automated tube warm-up
High operational safety due to several interlock circuits
Pre-settable X-ray parameters (high voltage and tube current)

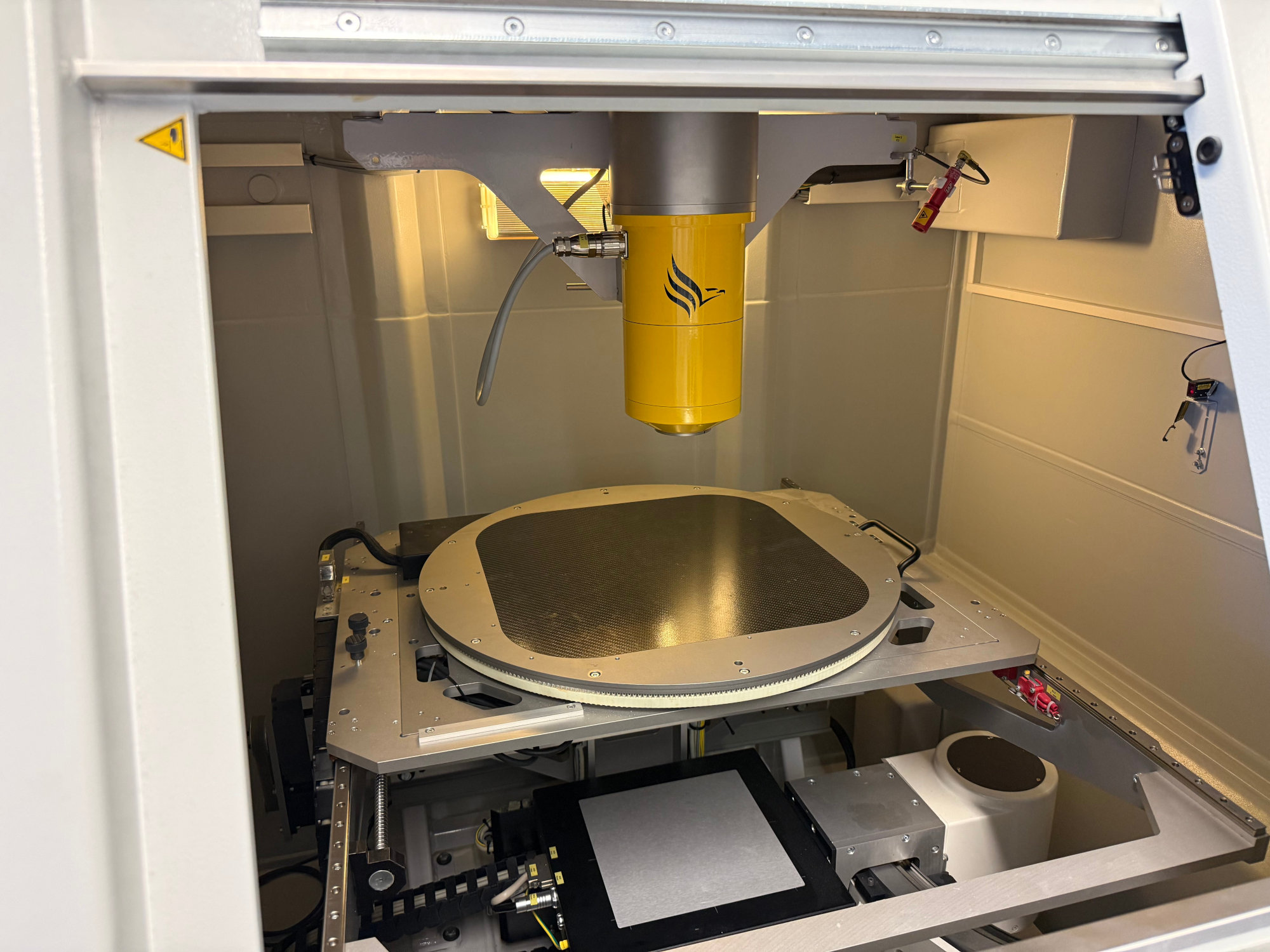

Easy-to-use manipulation system
Auto-Positioning Control (APC)
Image processing software, quality assurance
High quality 6" (145mm) Image Intensifier with electro-optical zoom to 4" (100mm)
Special X-ray CCD-Camera
Optional: Image Intensifier 4" (100mm) with electro-optical zoom to 2" (50mm)
Optional: Image Intensifier 9" (215mm) with electro-optical zoom to 6"/4.5" (160mm /
120mm)
Optional: High-contrast live
Optional: Laser crosshair for even more user-friendly manipulation
Optional: Anti-collision protection to prevent sample damage
Optional: cw/ccw module 2 with either 45° or 51° pivot angle
Optional: cw/ccw module 4 with 45° pivot angle
Optional: rotation/table
Optional: Rotary/tilt axis
Technical specifications – General Data
Dimensions (Width x Height x Depth) without operating console: 1760 x 1830 x 1262 mm
Weight: approx. 1700 kg / 3750 lb

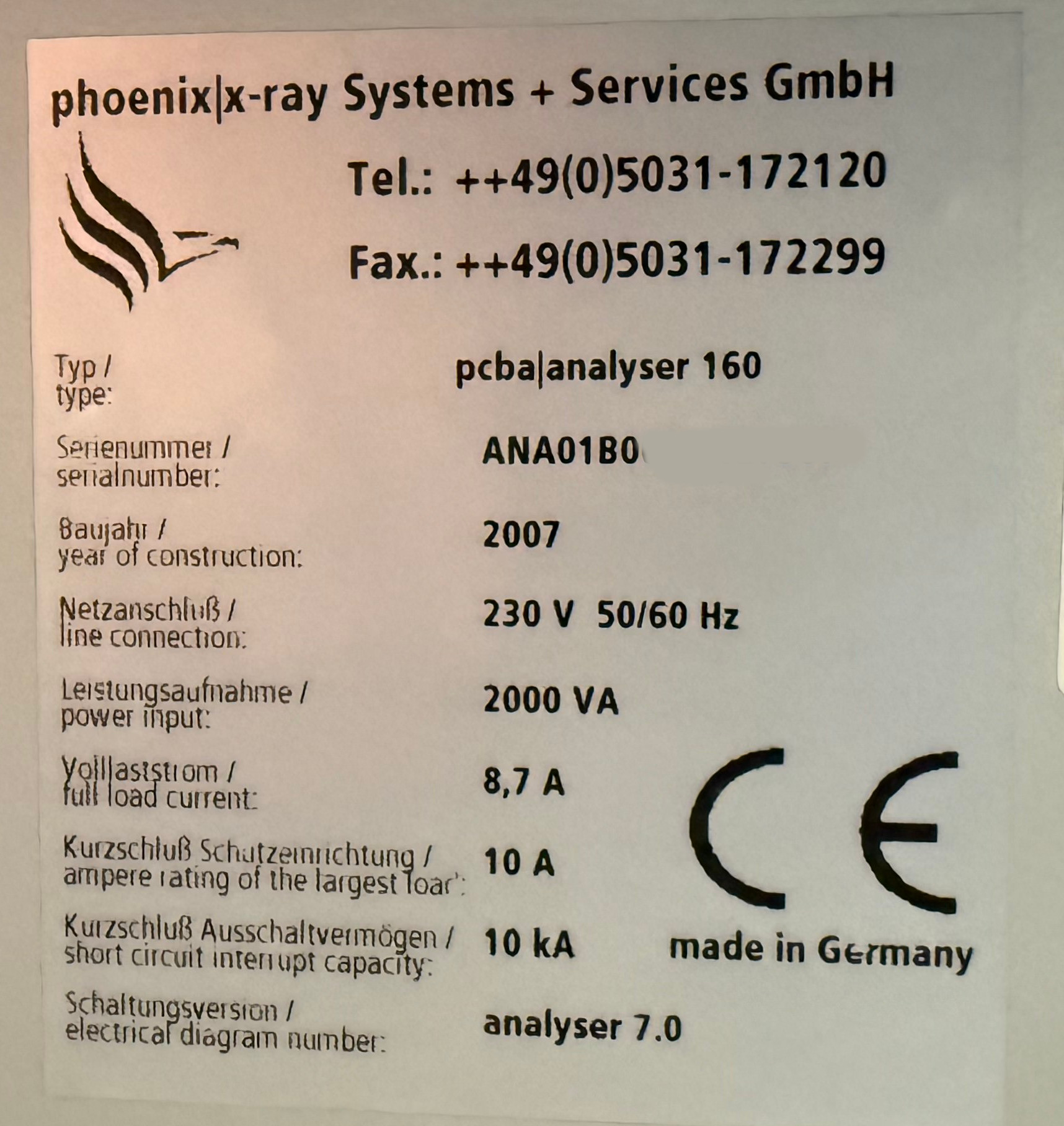

Power input
Voltage: 1~ 230 VAC/N/PE, 50 Hz (optional 1~ 110 VAC/N/PE, 60 Hz)
Power input: 2000 VA
Fuse in power supply: 1 x 10 A
Max. current in regular operating mode: 8.7 A
Switching capacity of the safety switch in the power supply connector (according to IEC
947-2): 10 kA
