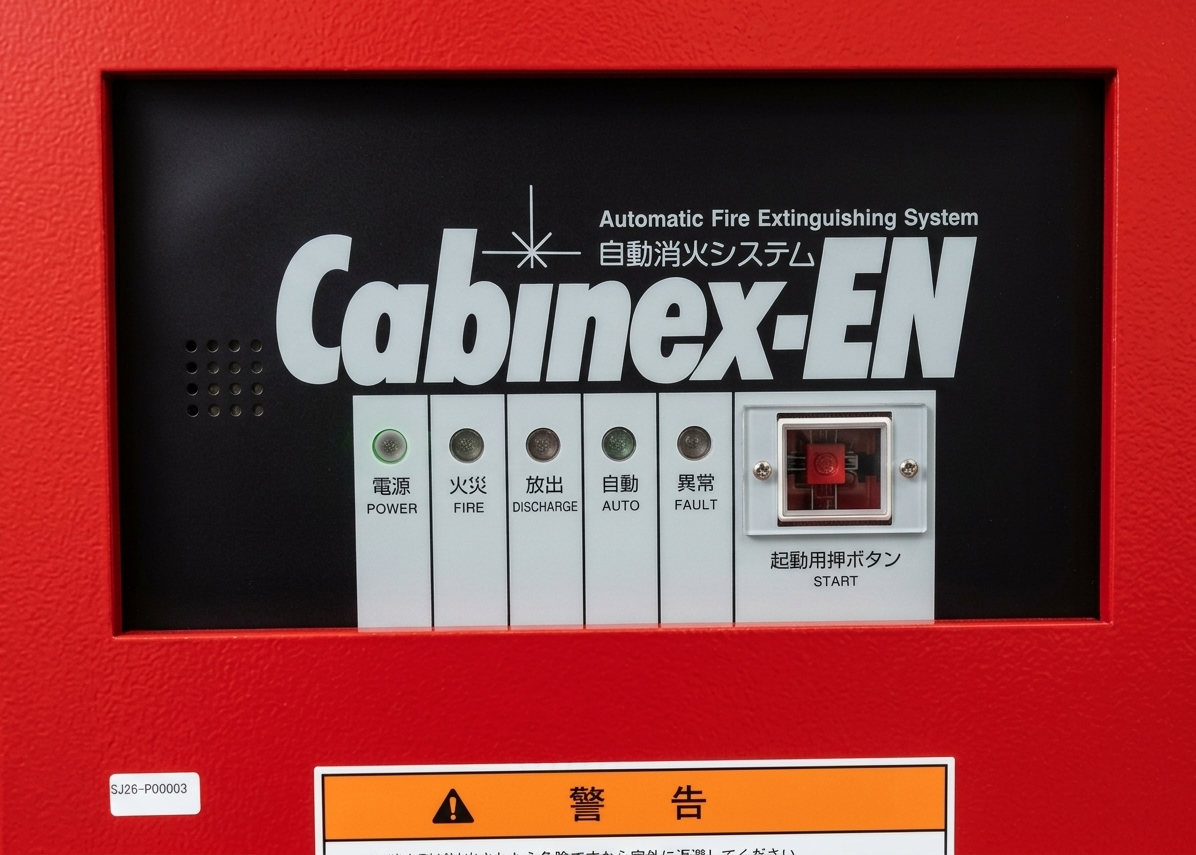

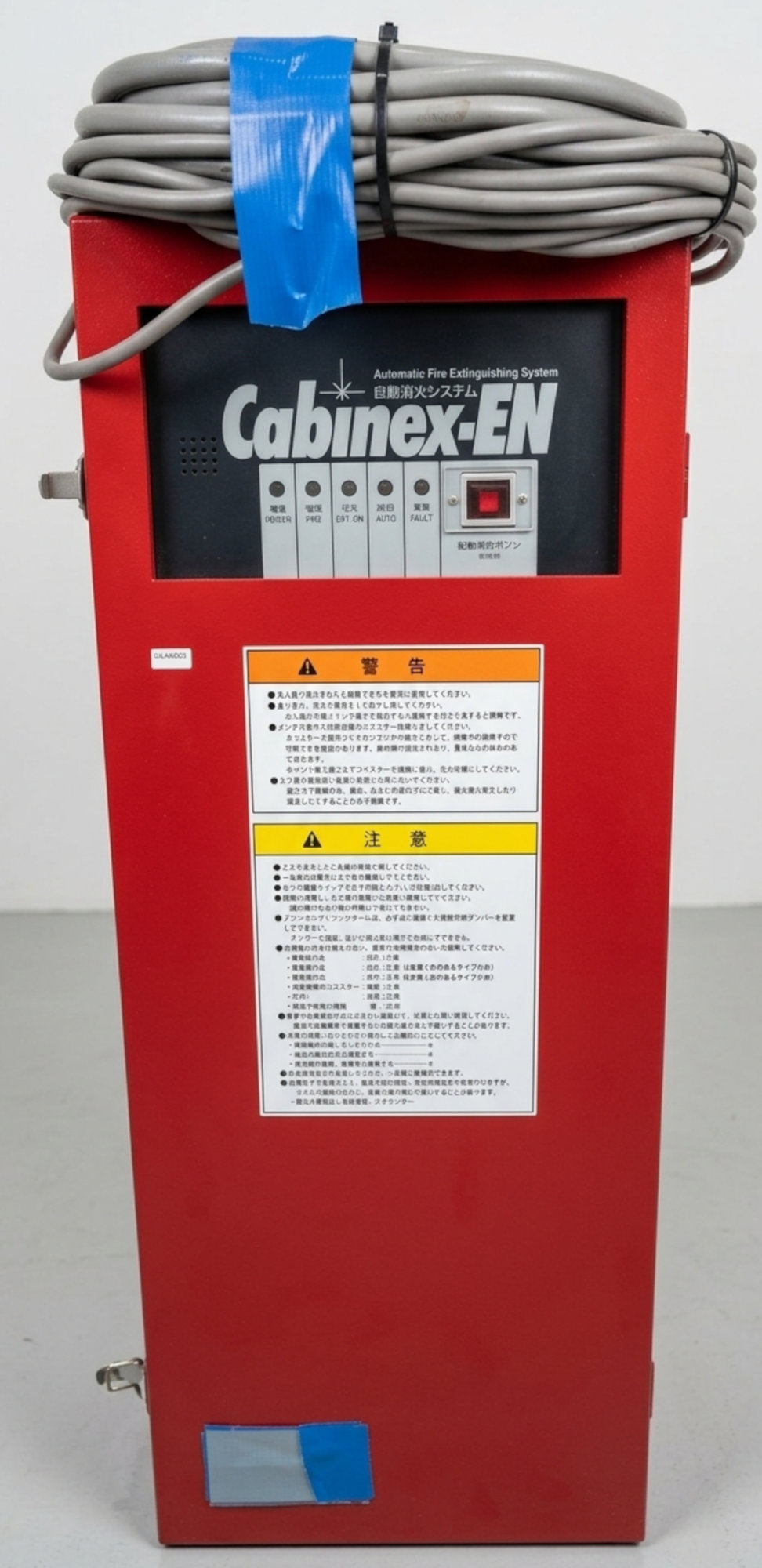

Hatsuta Cabinex COX-3EN Automatic Fire Extinguisher System for Sale

Type of fire extingisher system: COX3EN
Fire sensor circuit: OR
Timer: With 10 sec
2nd controller: 70C, 2 pieces
Burn-out alarm controller: WITH

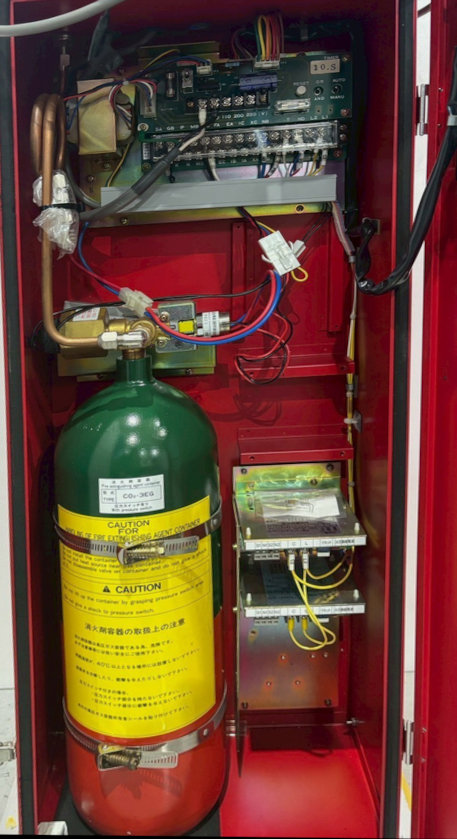

Extinguisher Gas Bottle Type: CO2 3LG

Technical Specifications & Product Details
Product Identification
System Type: Automatic Fire Extinguishing System
Model (TYPE No.): COX-3EN
Serial No.: 96041890
Manufacturer: Hatsuta Seisakusho Co., Ltd.
Date: April 1996 (96.4)

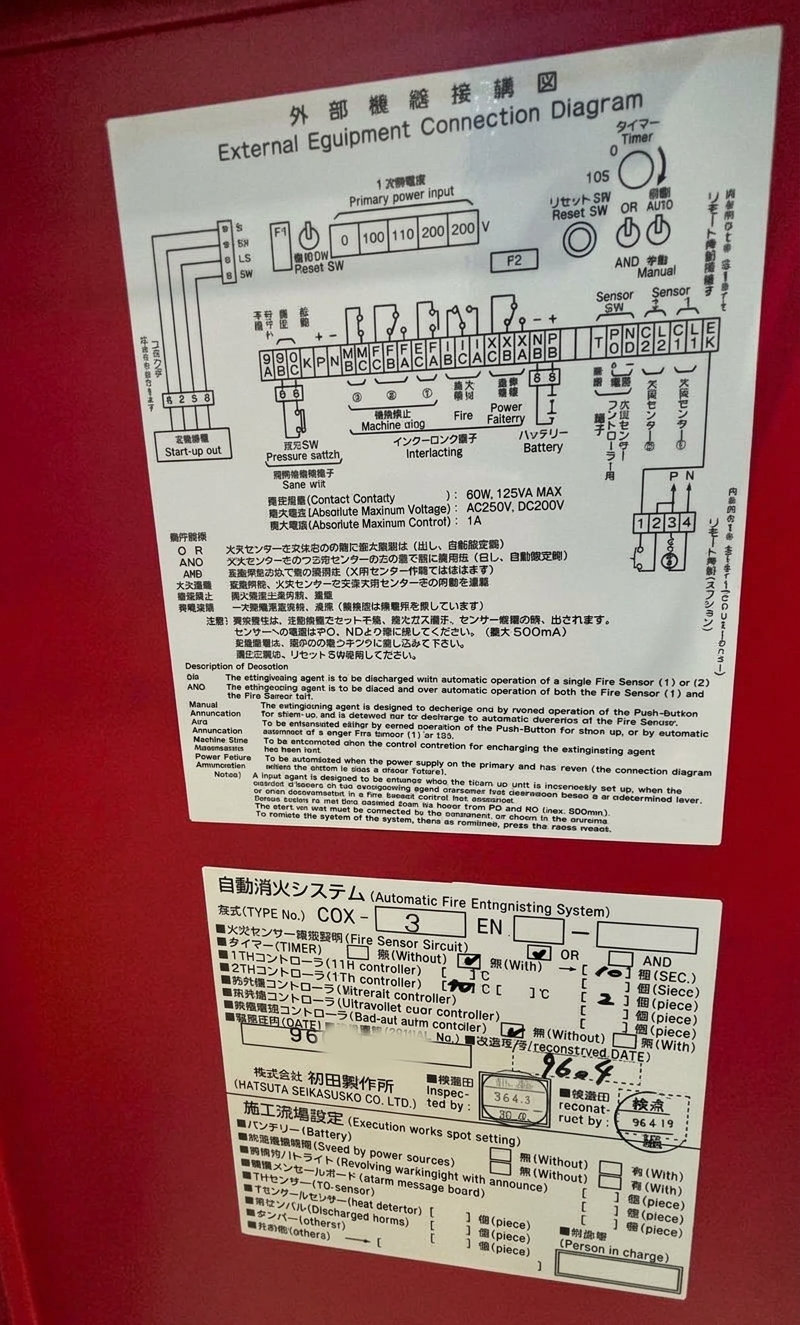

Electrical & Contact Specifications
Primary Power Input Options: 0V, 100V, 110V, 200V, 220V
Contact Capacity: 60W, 125VA MAX
Absolute Maximum Voltage: AC 250V, DC 200V
Absolute Maximum Current: 1A

System Configuration & Built-in Features
Fire Sensor Circuit: Configured for OR logic, equipped with a Timer (10 SEC).
Controllers Installed:
1TH Controller (1st Heat Controller): 2 pieces
2TH Controller (2nd Heat Controller): 1 piece
Infrared / Ultraviolet Controllers: None
Burn-out Alarm Controller: Included (With)
Execution Works / Execution Spot Settings:
Battery: Included (With)
Stand-by Power Source: Included (With)
Revolving Warning Light with Announce: Included (With)
Description of Functions

OR Mode: The extinguishing agent is discharged upon automatic operation of a single Fire Sensor (1) or (2).
AND Mode: The extinguishing agent is discharged upon automatic operation of both Fire Sensor (1) and Fire Sensor (2).
Manual: The extinguishing agent is designed to discharge only by manual operation of the Push-Button for Start-up, and is designed not to discharge by automatic operation of the Fire Sensor.

Annunciation / Signals:
Fire Annunciation: To be annunciated either by manual operation of the Push-Button for Start-up, or by automatic operation of a single Fire Sensor (1) or (2).
Machine Stop Annunciation: To be annunciated when the control conditions for discharging the extinguishing agent have been met.
Power Failure Annunciation: To be annunciated when the power supply on the primary side has failed.

Notes & Reset Instructions

A fault signal is designed to be initiated when the Start-up Unit is incorrectly set up, when the internal pressure of the Extinguishing Agent Container has decreased below a predetermined level, or when disconnection in a Fire Sensor circuit has occurred.
Power supply to the Fire Sensors must be taken from PD and ND (max. 500mA).
To restore the System to the normal, stand-by condition, press the Reset Switch.
